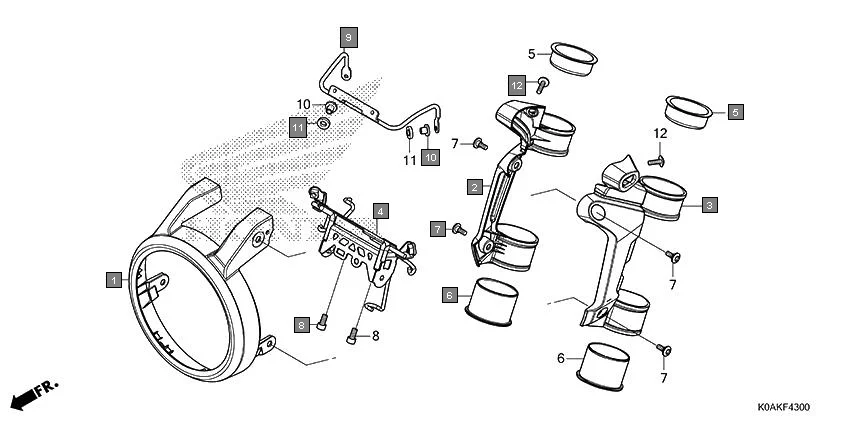

F-43 - FRONT COWL
HONDA CB300R CBF300NAK · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61321-K94-T00ZB | COVER, HEADLIGHT *NHA40M* MAT CRYPTON SILVER METALLIC | 1 | |
| 2 | 61331-K94-T00 | COWL, R. FR. | 1 | |
| 3 | 61332-K94-T00 | COWL, L. FR. | 1 | |
| 4 | 61340-K94-T00 | STAY COMP., FR. COWL | 1 | |
| 5 | 61351-K94-T00 | RUBBER A, FR. COWL | 2 | |
| 6 | 61352-K94-T00 | RUBBER B, FR. COWL | 2 | |
| 7 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 4 | |
| 8 | 96600-06012-08 | BOLT, SOCKET, 6X12 | 2 | |
| 9 | 64315-K0A-D10 | STAY, FR. NUMBER PLATE | 1 | |
| 10 | 64316-K0A-D10 | COLLAR, FR. NUMBER STAY | 2 | |
| 11 | 64317-K0A-D10 | WASHER, RUBBER | 2 | |
| 12 | 90134-K0E-D00 | SCREW, PAN, 5X18 | 2 | |
