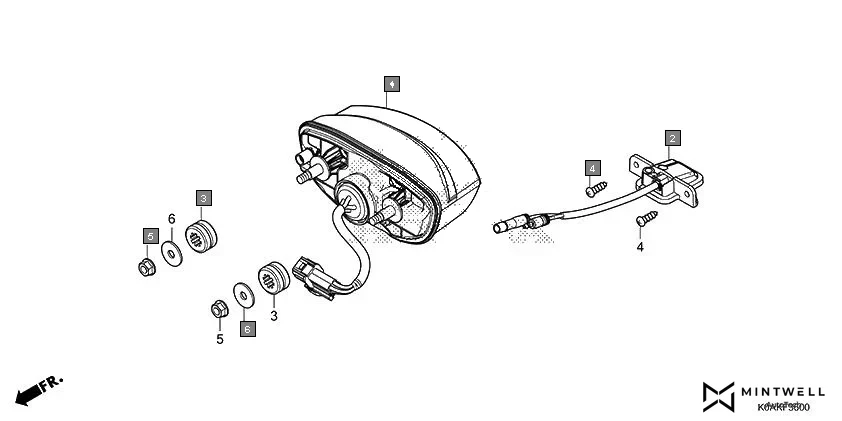

F-36 - TAILLIGHT
HONDA CB300R CBF300NAK · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33701-K0A-E11 | LIGHT ASSY., TAIL & STOP | 1 | |
| 2 | 33720-K94-T01 | LIGHT ASSY., LICENSE | 1 | |
| 3 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 2 | |
| 6 | 94103-06000 | WASHER PLAIN,6MM | 2 | |
