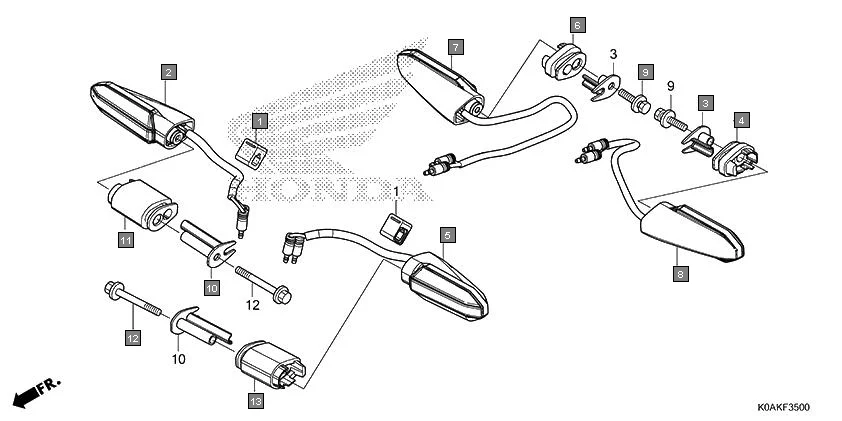

F-35 - WINKER
HONDA CB300R CBF300NAK · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32116-K94-T00 | SUSPENSION | 2 | |
| 2 | 33400-K0A-D11 | WINKER ASSY., R. FR. | 1 | |
| 3 | 33411-K15-920 | COLLAR, WINKER | 2 | |
| 4 | 33412-K15-920 | RUBBER, R. WINKER MOUNTING (L. RR.) | 1 | |
| 5 | 33450-K0A-D11 | WINKER ASSY., L. FR. | 1 | |
| 6 | 33452-K15-920 | RUBBER, L. WINKER MOUNTING (R. RR.) | 1 | |
| 7 | 33600-K94-T01 | WINKER ASSY., R. RR. | 1 | |
| 8 | 33650-K94-T01 | WINKER ASSY., L. RR. | 1 | |
| 9 | 93411-05025-00 | BOLT-WASHER, 5X25 | 2 | |
| 10 | 33411-K0A-A00 | COLLAR, WINKER | 2 | |
| 11 | 33412-K0A-A00 | RUBBER, R. WINKER MOUNTING | 1 | |
| 12 | 33413-K0A-A00 | BOLT-WASHER, 5X57 | 2 | |
| 13 | 33452-K0A-A00 | RUBBER, L. WINKER MOUNTING | 1 | |
