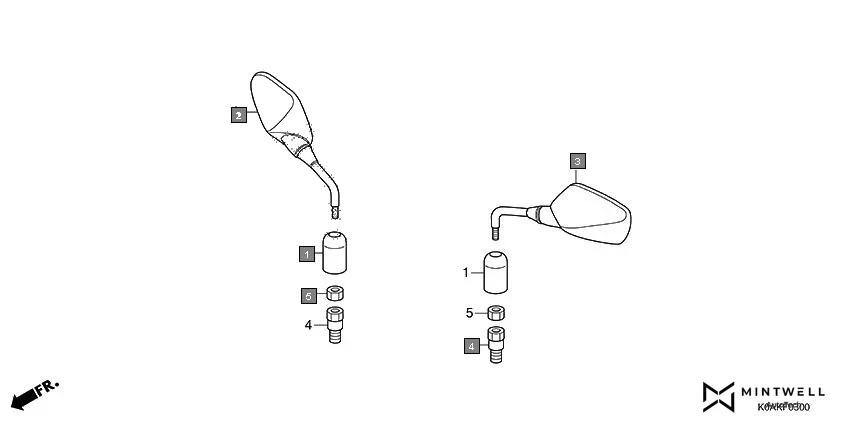

F-3 - MIRROR
HONDA CB300R CBF300NAK · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88130-MJE-D40 | COVER, LOCK NUT | 2 | |
| 2 | 88210-MJE-D40 | MIRROR COMP., R. BACK | 1 | |
| 3 | 88220-MJE-D40 | MIRROR COMP., L. BACK | 1 | |
| 4 | 90104-MJE-D40 | BOLT, ADAPTER, 10MM | 2 | |
| 5 | 90310-MJE-D40 | NUT, HEX., 10MM (LEFT HAND THREAD) | 2 | |
