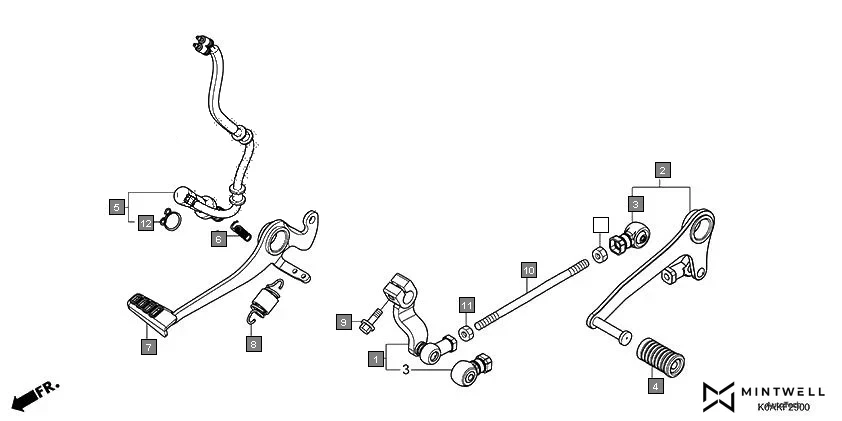

F-29 - PEDAL
HONDA CB300R CBF300NAK · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24710-K0A-E10 | ARM COMP., GEAR CHANGE | 1 | |
| 2 | 24720-K0A-E10 | PEDAL COMP., GEAR CHANGE | 1 | |
| 3 | 24724-MBW-D21 | COVER, DUST | 2 | |
| 4 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 5 | 35350-K94-T11 | SWITCH ASSY., RR. STOP | 1 | |
| 6 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 | |
| 7 | 46500-K94-T00 | PEDAL COMP., BRAKE | 1 | |
| 8 | 46511-KZ4-J00 | SPRING ASSY., RR. BRAKE RETURN | 1 | |
| 9 | 90010-ML0-720 | BOLT, FLANGE, 6X20 | 1 | |
| 10 | 90165-K0A-E10 | BOLT, TIE ROD | 1 | |
| 11 | 90301-KYJ-900 | NUT, SPECIAL, 6MM (LEFTHANDTHREAD) | 1 | |
| 12 | 90601-KAF-003 | CLIP, SW. COVER | 1 | |
| 13 | 94001-06080-0S | NUT, HEX., 6MM | 1 | |
