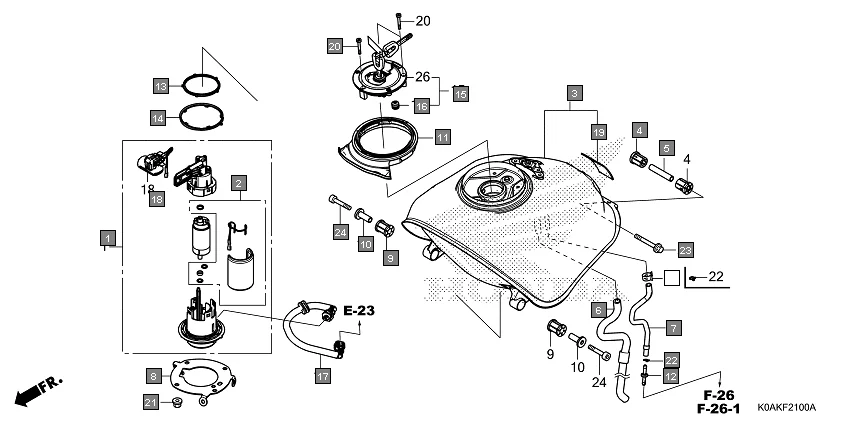

F-21 - FUEL TANK
HONDA CB300R CBF300NAK · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-K0A-D11 | PUMP ASSY..FUEL | 1 | |
| 2 | 16707-K94-T01 | FILTER SET | 1 | |
| 3 | 17500-K0A-E10 | TANK ASSY., FUEL | 1 | |
| 4 | 17506-K94-T00 | CUSHION, FUEL TANK RR. PIVOT | 2 | |
| 5 | 17507-KZZ-900 | COLLAR, TANK SET | 1 | |
| 6 | 17525-K94-T00 | TUBE, FUEL DRAIN | 1 | |
| 7 | 17526-K94-T00 | TUBE, FUEL TANK BREATHER | 1 | |
| 8 | 17527-K0A-E10 | PLATE, SETTING | 1 | |
| 9 | 17534-K94-T00 | RUBBER, FR. TANK MOUNTING | 2 | |
| 10 | 17538-KZZ-900 | COLLAR | 2 | |
| 11 | 17545-K94-T00 | SEAL, FUEL TANK | 1 | |
| 12 | 17561-K98-E00 | JOINT, FUEL TUBE | 1 | |
| 13 | 17572-GHB-613 | GASKET, FUEL PUMP | 1 | |
| 14 | 17573-KPN-A71 | SEAL, DUST | 1 | |
| 15 | 17620-MJE-D02 | CAP COMP., FUEL FILLER | 1 | |
| 16 | 17621-MGP-D61 | SEAL, BREATHER | 1 | |
| 17 | 17650-K0A-E11 | HOSE COMP., FUEL FEED | 1 | |
| 18 | 37800-K94-T01 | FUEL UNIT | 1 | |
| 19 | 81257-K26-B00 | RUBBER, PROTECTOR | 1 | |
| 20 | 90110-MGP-D60 | BOLT, SOCKET, 4X24(SUS) | 3 | |
| 21 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 22 | 95002-02080 | CLIP, TUBE | 1 | |
| 23 | 96001-06065-00 | BOLT, FLANGE, SH. 6 X 65 | 1 | |
| 24 | 96600-06040-08 | BOLT, SOCKET, 6X40 | 2 | |
| 25 | 95002-41000-08 | CLAMP, TUBE(D10) | 1 | |
