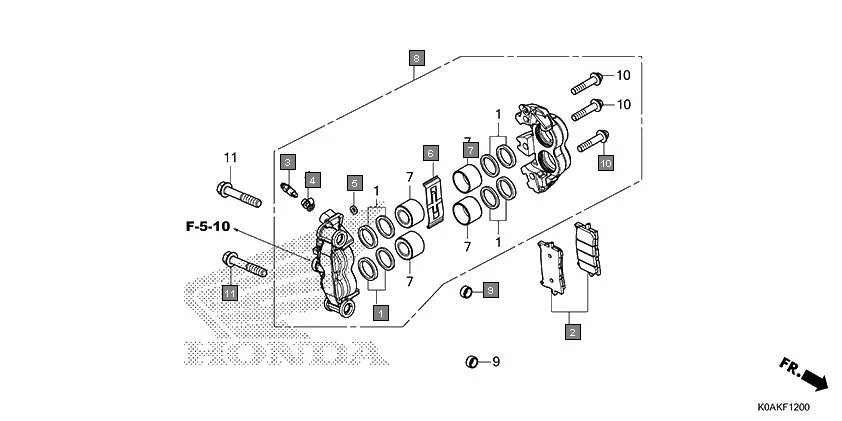

F-12 - FRONT BRAKE CALIPER
HONDA CB300R CBF300NAK · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-GE2-405 | SEAL SET, PISTON | 4 | |
| 2 | 06455-K94-T01 | PAD SET, FR. | 1 | |
| 3 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 1 | |
| 4 | 43353-461-771 | CAP, BLEEDER | 1 | |
| 5 | 45103-MR7-006 | SEAL, JOINT | 1 | |
| 6 | 45106-MJP-G51 | SPRING, PAD | 1 | |
| 7 | 45107-K94-T01 | PISTON A | 4 | |
| 8 | 45250-K94-T01 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 | |
| 9 | 51497-K94-T00 | SPACER, FR. FORK | 2 | |
| 10 | 90104-MJP-G51 | BOLT, TORX, 8X38 | 3 | |
| 11 | 90123-K94-T00 | BOLT, FLANGE, 10X57 | 2 | |
