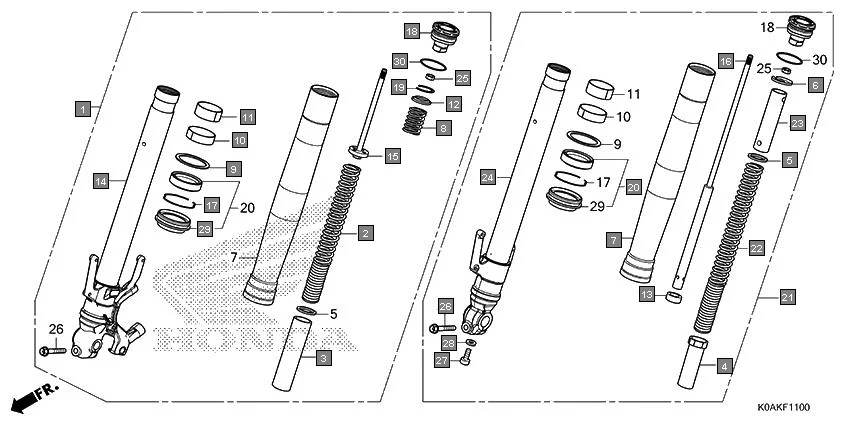

F-11 - FRONT FORK
HONDA CB300R CBF300NAK · 30 parts
Parts in This Assembly (30)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-K0A-E11 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 2 | 51401-K0A-E11 | SPRING, FR. FORK | 1 | |
| 3 | 51402-K94-T01 | COLLAR, SPRING | 1 | |
| 4 | 51403-K94-T01 | JOINT COMP., SPRING | 1 | |
| 5 | 51403-KF0-003 | SEAT, SPRING(SHOWA) | 2 | |
| 6 | 51408-MZ0-003 | STOPPER, SPRING SEAT | 1 | |
| 7 | 51410-K98-E01 | TUBE, OUTER | 2 | |
| 8 | 51412-K94-T01 | SPRING, REBOUND | 1 | |
| 9 | 51412-MB4-003 | RING, BACK UP(SHOWA) | 2 | |
| 10 | 51414-MFJ-A51 | BUSH, GUIDE | 2 | |
| 11 | 51415-MFJ-A51 | BUSH, SLIDER | 2 | |
| 12 | 51419-K94-T01 | SEAT, STOPPER | 1 | |
| 13 | 51423-K94-T01 | PLATE, CENTERING | 1 | |
| 14 | 51425-K94-T11 | PIPE COMP., R. SLIDE | 1 | |
| 15 | 51426-K94-T01 | ROD COMP. | 1 | |
| 16 | 51430-K94-T01 | DAMPER COMP., FR. | 1 | |
| 17 | 51447-KA4-711 | RING, OIL SEAL STOPPER(SHOWA) | 2 | |
| 18 | 51450-K94-T01 | BOLT COMP., FR. FORK | 2 | |
| 19 | 51456-K94-T01 | RING, STOPPER | 1 | |
| 20 | 51490-MKA-D81 | SEAL SET, FR. FORK | 2 | |
| 21 | 51500-K0A-E11 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 22 | 51501-K0A-E11 | SPRING B, FR. FORK | 1 | |
| 23 | 51502-K94-T01 | COLLAR B, SPRING | 1 | |
| 24 | 51525-K94-T01 | PIPE COMP., L. SLIDE | 1 | |
| 25 | 52482-K94-T01 | NUT, HEX. | 2 | |
| 26 | 90109-MR7-000 | BOLT, FLANGE, 8X45 | 2 | |
| 27 | 90116-088-931 | BOLT, SOCKET, 8X22 | 1 | |
| 28 | 90544-283-000 | WASHER, SPECIAL, 8MM(SHOWA) | 1 | |
| 29 | 91251-MKA-D81 | SEAL, DUST(SHOWA) | 2 | |
| 30 | 91258-MEE-D01 | O-RING, 39.7X2.4 | 2 | |
