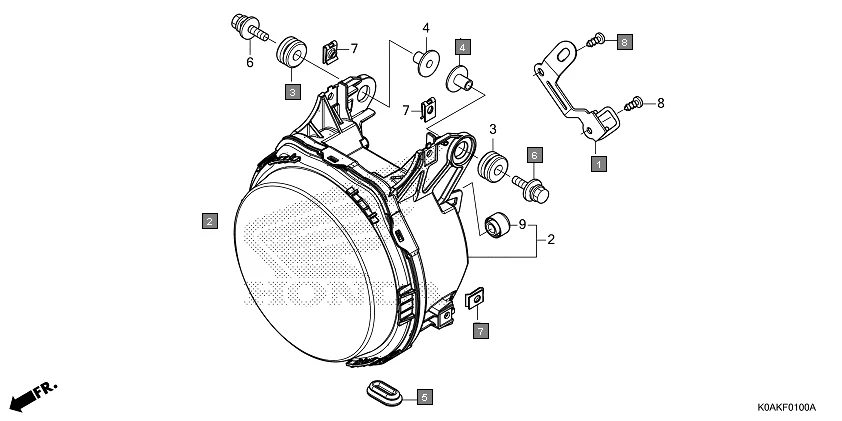

F-1 - HEADLIGHT
HONDA CB300R CBF300NAK · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32111-K94-T00 | STAY, HARNESS | 1 | |
| 2 | 33100-K94-T02 | HEADLIGHT ASSY. | 1 | |
| 3 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 2 | |
| 4 | 61104-KZZ-900 | COLLAR | 2 | |
| 5 | 77211-KYA-B00 | GROMMET, RR. COWL | 1 | |
| 6 | 90104-KZZ-900 | BOLT-WASHER, 6X22 | 2 | |
| 7 | 90677-KAN-T00 | NUT, CLIP, 5MM | 4 | |
| 8 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
