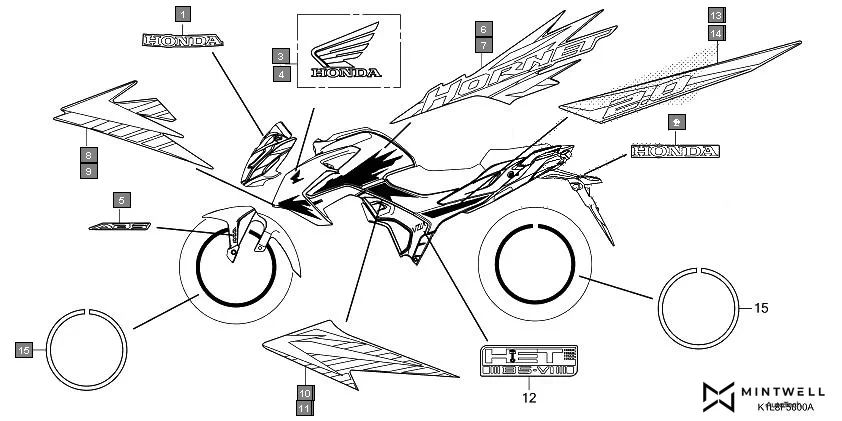

F-50 - MARK(CBF190MAL/N)
HONDA Hornet 2.0 CBF190MAN · 52 parts
Parts in This Assembly (52)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K1L-D00ZA | MARK, HONDA(70MM) *TYPE1* | 1 | |
| 2 | 86102-K1L-D00ZA | MARK, HONDA(60MM) *TYPE1* | 1 | |
| 3 | 86201-K0E-D00 | EMBLEM, R. WING(80MM) | 1 | |
| 4 | 86202-K0E-D00 | EMBLEM, L. WING(80MM) | 1 | |
| 5 | 86611-K43-D20ZA | MARK, ABS *TYPE3* | 1 | |
| 5 | 86611-K43-D20ZC | MARK, ABS *TYPE1* (R. SIDE ONLY) | 1 | |
| 5 | 86611-K43-D20ZB | MARK, ABS *TYPE2* (R. SIDE ONLY) | 1 | |
| 6 | 86641-K1L-D50ZA | STRIPE, R. FUEL TANK COVER *TYPE5* | 1 | |
| 6 | 86641-K1L-D50ZB | STRIPE, R. FUEL TANK COVER *TYPE4* | 1 | |
| 6 | 86641-K1L-D50ZC | STRIPE, R. FUEL TANK COVER *TYPE3* | 1 | |
| 6 | 86641-K1L-D50ZD | STRIPE, R. FUEL TANK COVER *TYPE2* | 1 | |
| 6 | 86641-K1L-D50ZE | STRIPE, R. FUEL TANK COVER *TYPE1* | 1 | |
| 7 | 86642-K1L-D50ZA | STRIPE, L. FUEL TANK COVER *TYPE5* | 1 | |
| 7 | 86642-K1L-D50ZB | STRIPE, L. FUEL TANK COVER *TYPE4* | 1 | |
| 7 | 86642-K1L-D50ZC | STRIPE, L. FUEL TANK COVER *TYPE3* | 1 | |
| 7 | 86642-K1L-D50ZD | STRIPE, L. FUEL TANK COVER *TYPE2* | 1 | |
| 7 | 86642-K1L-D50ZE | STRIPE, L. FUEL TANK COVER *TYPE1* | 1 | |
| 8 | 86645-K1L-D50ZA | STRIPE, R. SHROUD GARNISH *TYPE5* | 1 | |
| 8 | 86645-K1L-D50ZB | STRIPE, R. SHROUD GARNISH *TYPE4* | 1 | |
| 8 | 86645-K1L-D50ZC | STRIPE, R. SHROUD GARNISH *TYPE3* | 1 | |
| 8 | 86645-K1L-D50ZD | STRIPE, R. SHROUD GARNISH *TYPE2* | 1 | |
| 8 | 86645-K1L-D50ZE | STRIPE, R. SHROUD GARNISH *TYPE1* | 1 | |
| 9 | 86646-K1L-D50ZA | STRIPE, L. SHROUD GARNISH *TYPE5* | 1 | |
| 9 | 86646-K1L-D50ZB | STRIPE, L. SHROUD GARNISH *TYPE4* | 1 | |
| 9 | 86646-K1L-D50ZC | STRIPE, L. SHROUD GARNISH *TYPE3* | 1 | |
| 9 | 86646-K1L-D50ZD | STRIPE, L. SHROUD GARNISH *TYPE2* | 1 | |
| 9 | 86646-K1L-D50ZE | STRIPE, L. SHROUD GARNISH *TYPE1* | 1 | |
| 10 | 86831-K1L-D50ZA | STRIPE A, R. SIDE COVER B *TYPE5* | 1 | |
| 10 | 86831-K1L-D50ZB | STRIPE A, R. SIDE COVER B *TYPE4* | 1 | |
| 10 | 86831-K1L-D50ZC | STRIPE A, R. SIDE COVER B *TYPE3* | 1 | |
| 10 | 86831-K1L-D50ZD | STRIPE A, R. SIDE COVER B *TYPE2* | 1 | |
| 10 | 86831-K1L-D50ZE | STRIPE A, R. SIDE COVER B *TYPE1* | 1 | |
| 11 | 86832-K1L-D50ZA | STRIPE A, L. SIDE COVER B *TYPE5* | 1 | |
| 11 | 86832-K1L-D50ZB | STRIPE A, L. SIDE COVER B *TYPE4* | 1 | |
| 11 | 86832-K1L-D50ZC | STRIPE A, L. SIDE COVER B *TYPE3* | 1 | |
| 11 | 86832-K1L-D50ZD | STRIPE A, L. SIDE COVER B *TYPE2* | 1 | |
| 11 | 86832-K1L-D50ZE | STRIPE A, L. SIDE COVER B *TYPE1* | 1 | |
| 13 | 86833-K1L-D50ZA | STRIPE B, R. SIDE COVER B *TYPE5* | 1 | |
| 13 | 86833-K1L-D50ZB | STRIPE B, R. SIDE COVER B *TYPE4* | 1 | |
| 13 | 86833-K1L-D50ZC | STRIPE B, R. SIDE COVER B *TYPE3* | 1 | |
| 13 | 86833-K1L-D50ZD | STRIPE B, R. SIDE COVER B *TYPE2* | 1 | |
| 13 | 86833-K1L-D50ZE | STRIPE B, R. SIDE COVER B *TYPE1* | 1 | |
| 14 | 86834-K1L-D50ZA | STRIPE B, L. SIDE COVER B *TYPE5* | 1 | |
| 14 | 86834-K1L-D50ZB | STRIPE B, L. SIDE COVER B *TYPE4* | 1 | |
| 14 | 86834-K1L-D50ZC | STRIPE B, L. SIDE COVER B *TYPE3* | 1 | |
| 14 | 86834-K1L-D50ZD | STRIPE B, L. SIDE COVER B *TYPE2* | 1 | |
| 14 | 86834-K1L-D50ZE | STRIPE B, L. SIDE COVER B *TYPE1* | 1 | |
| 15 | 86421-K1L-D50ZC | STRIPE, WHEEL *TYPE3* | 4 | |
| 15 | 86421-K1L-D50ZD | STRIPE, WHEEL *TYPE2* | 4 | |
| 15 | 86421-K1L-D50ZE | STRIPE, WHEEL *TYPE1* | 4 | |
| 15 | 86421-K1L-D00ZC | STRIPE, WHEEL *TYPE2* | 4 | |
| 15 | 86421-K1L-D00ZD | STRIPE, WHEEL *TYPE1* | 4 | |
