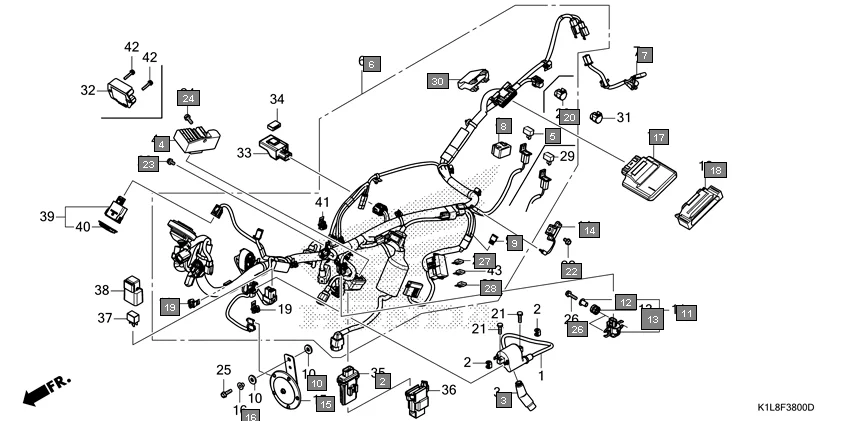

F-38 - WIRE HARNESS
HONDA Hornet 2.0 CBF190MAN · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30500-K1L-D01 | COIL ASSY., IGNITION(WINGS) | 1 | |
| 2 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 3 | 30700-KZA-W01 | CAP ASSY. NOISE SUPPRESSOR | 1 | |
| 4 | 31600-K1L-D01 | RECTIFIER COMP., REGULATE (STAR) | 1 | |
| 5 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 6 | 32100-K1L-D00 | HARNESS, WIRE | 1 | |
| 7 | 32105-K1L-D00 | SUB HARNESS, RR. | 1 | |
| 8 | 32112-K1L-D00 | SUSPENSION, DIODE | 1 | |
| 9 | 32146-SJ4-003 | DIODE(3P) | 1 | |
| 10 | 33714-K38-900 | RUBBER, TAILLIGHT BRACKET | 2 | |
| 11 | 35160-KRE-G01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 12 | 35162-KRE-G00 | COLLAR | 2 | |
| 13 | 35163-KRE-G00 | GROMMET | 2 | |
| 14 | 35400-K43-901 | RESISTOR COMP. | 1 | |
| 15 | 38110-KYJ-611 | HORN COMP. | 1 | |
| 16 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 17 | 38770-K1L-D01 | PGM-FI UNIT | 1 | |
| 18 | 38771-K1K-D00 | CUSHION, PGM-FI UNIT | 1 | |
| 19 | 91535-STK-003 | CLIP, COUPLER(DARK BLUE) | 2 | |
| 20 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 21 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 22 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 25 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 27 | 98200-40750 | FUSE, MINI(7.5A) | 5 | |
| 28 | 98200-41000 | FUSE, MINI(10A) | 3 | |
| 30 | 32153-K0E-D51 | COVER(WPC 48P 025 F) | 1 | |
