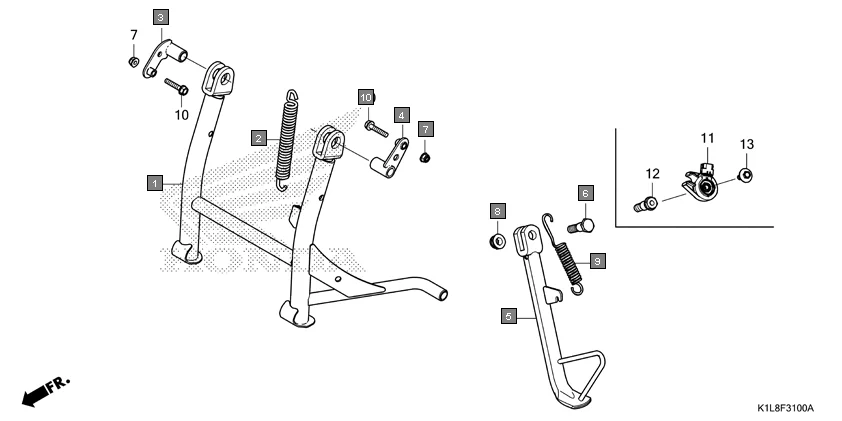

F-31 - STAND
HONDA Hornet 2.0 CBF190MAN · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-K1L-D00 | STAND COMP., MAIN | 1 | |
| 2 | 50520-K21-900 | SPRING, MAIN STAND | 1 | |
| 3 | 50526-K43-900 | SHAFT, MAIN STAND PIVOT(R.) | 1 | |
| 4 | 50527-K43-900 | SHAFT, MAIN STAND PIVOT(L.) | 1 | |
| 5 | 50530-K1L-D00 | BAR COMP., SIDE STAND | 1 | |
| 6 | 90107-GN1-010 | SCREW SIDE STAND PIVOT | 1 | |
| 7 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 9 | 95014-72102 | SPRING, SIDE STAND | 1 | |
