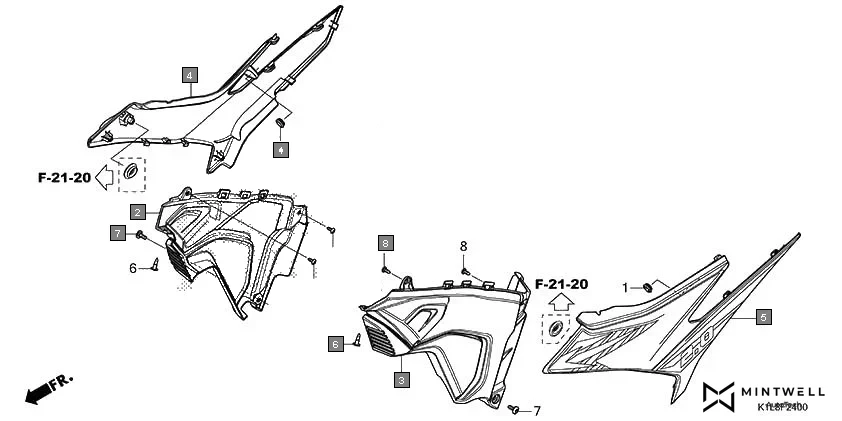

F-24 - SIDE COVER
HONDA Hornet 2.0 CBF190MAN · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64413-KSS-C00 | GROMMET, BODY COVER | 2 | |
| 2 | 83560-K1L-D00ZA | COVER SET A, R. SIDE(WL) *TYPE1* | 1 | |
| 3 | 83571-K1L-D00 | COVER A, L. SIDE | 1 | |
| 4 | 83660-K1L-D00ZA | COVER SET B, R. SIDE(WL) *TYPE4* | 1 | |
| 4 | 83660-K1L-D00ZB | COVER SET B, R. SIDE(WL) *TYPE3* | 1 | |
| 4 | 83660-K1L-D00ZC | COVER SET B, R. SIDE(WL) *TYPE2* | 1 | |
| 4 | 83660-K1L-D00ZD | COVER SET B, R. SIDE(WL) *TYPE1* | 1 | |
| 5 | 83670-K1L-D00ZA | COVER SET B, L. SIDE(WL) *TYPE4* | 1 | |
| 5 | 83670-K1L-D00ZB | COVER SET B, L. SIDE(WL) *TYPE3* | 1 | |
| 5 | 83670-K1L-D00ZC | COVER SET B, L. SIDE(WL) *TYPE2* | 1 | |
| 5 | 83670-K1L-D00ZD | COVER SET B, L. SIDE(WL) *TYPE1* | 1 | |
| 7 | 90134-K43-900 | SCREW, PAN, 5X14 | 2 | |
