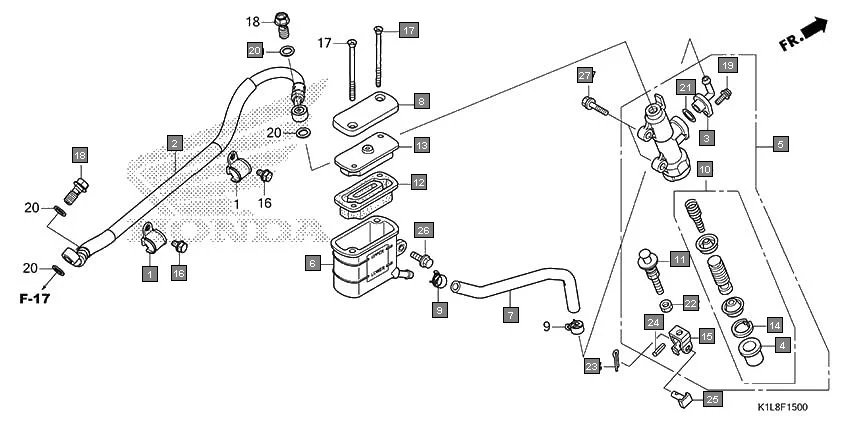

F-15 - REAR BRAKE MASTER CYLINDER
HONDA Hornet 2.0 CBF190MAN · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43155-K15-900 | CLAMPER, RR. BRAKE HOSE | 2 | |
| 2 | 43310-K1L-D01 | HOSE COMP., RR. BRAKE | 1 | |
| 3 | 43503-MER-D01 | CONNECTOR, MASTER CYLINDER | 1 | |
| 4 | 43504-MB2-006 | BOOT COMP. | 1 | |
| 5 | 43510-K43-D31 | CYLINDER SUB ASSY., RR. MASTER (NISSIN) | 1 | |
| 6 | 43511-K43-D31 | CUP COMP., OIL | 1 | |
| 7 | 43512-K43-D31 | HOSE, RR. MASTER CYLINDER | 1 | |
| 8 | 43513-KBP-881 | CAP, MASTER CYLINDER | 1 | |
| 9 | 43514-KS6-701 | CLAMP. M/C OIL HOSE | 2 | |
| 10 | 43520-MJ6-315 | PISTON SET M/C | 1 | |
| 11 | 43530-KYZ-911 | ROD COMP., PUSH | 1 | |
| 12 | 45520-GW0-911 | DIAPHRAGM | 1 | |
| 13 | 45521-GW0-911 | PLATE DIAPHRAGM | 1 | |
| 14 | 46182-MEL-D21 | CIRCLIP | 1 | |
| 15 | 46504-KV6-702 | JOINT BRK ROD | 1 | |
| 16 | 90102-KGH-900 | BOLT, FLANGE, 6X10 | 2 | |
| 17 | 90140-K43-D31 | SCREW, FLAT, 4X50 | 2 | |
| 21 | 91212-422-006 | O RING | 1 | |
| 22 | 94002-08000-0S | NUT HEX.8 MM | 1 | |
| 23 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
| 24 | 94305-20102 | PIN SPRING 2X10 | 1 | |
| 25 | 46503-K0N-D00 | PIN D, JOINT | 1 | |
| 26 | 95701-06014-08 | BOLT FLANGE 6X14 | 1 | |
| 27 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 2 | |
