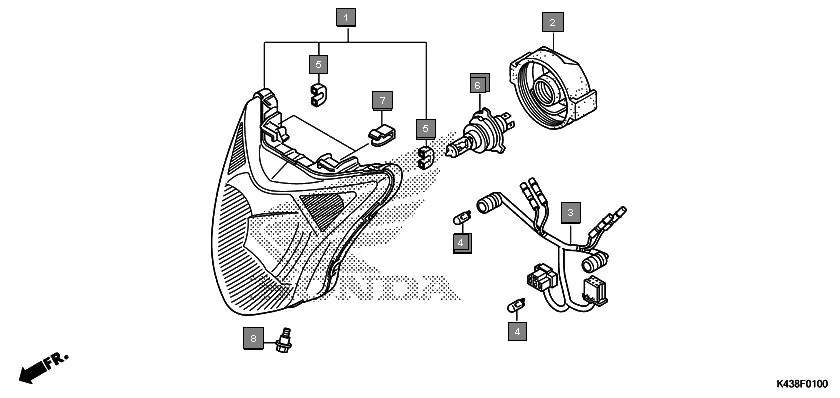

F-1 - HEADLIGHT
HONDA CB Hornet 160R CBF160MH · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33120-K43-901 | HEADLIGHT UNIT | 1 | |
| 2 | 33126-K21-901 | COVER, RUBBER | 1 | |
| 3 | 33150-K43-901 | SOCKET COMP., POSITION LIGHT | 1 | |
| 4 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 2 | |
| 4 | 33301-SA0-741 | BULB(12V 5W)(STANLEY) | 2 | |
| 5 | 33706-K43-901 | TUBE | 2 | |
| 6 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 6 | 34901-KTE-740 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) | 1 | |
| 7 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 8 | 90102-K43-900 | BOLT, ADJUSTING | 1 | |
