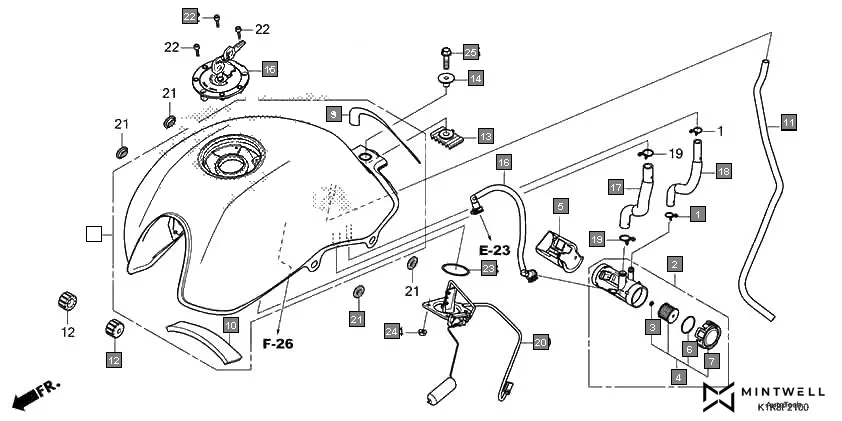

F-21 - FUEL TANK
HONDA CB Unicorn 160 CBF160AR · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15771-KV6-000 | CLIP, OIL DRAIN TUBE | 2 | |
| 2 | 16700-K0Y-D01 | PUMP UNIT, FUEL | 1 | |
| 3 | 16706-KVB-S51 | O-RING(P7) | 1 | |
| 4 | 16707-K0Y-D01 | FILTER SET | 1 | |
| 5 | 16715-K1K-D00 | RUBBER, FUEL PUMP | 1 | |
| 6 | 16723-K0Y-D01 | O-RING, FILTER | 1 | |
| 7 | 16724-K0Y-D01 | COVER, FILTER | 1 | |
| 8 | 17500-K1K-D00ZE | TANK ASSY., FUEL(WL) *TYPE4* | 1 | |
| 8 | 17500-K1K-D00ZF | TANK ASSY., FUEL(WL) *TYPE3* | 1 | |
| 8 | 17500-K1K-D00ZG | TANK ASSY., FUEL(WL) *TYPE2* | 1 | |
| 8 | 17500-K1K-D00ZH | TANK ASSY., FUEL(WL) *TYPE1* | 1 | |
| 9 | 17517-K1K-D00 | FILM, TANK PROTECTOR | 1 | |
| 10 | 17529-K1K-D00 | SILENCER SEAT, FUEL TANK | 1 | |
| 11 | 17557-K1K-D00 | TUBE, DRAIN | 1 | |
| 12 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 13 | 17613-KWS-900 | RUBBER, FUEL TANK RR. | 1 | |
| 14 | 17614-KR3-000 | COLLAR FUEL TANK MT | 1 | |
| 15 | 17620-KSP-862 | CAP COMP., FUEL FILLER | 1 | |
| 16 | 17650-K1K-D01 | HOSE COMP., FUEL FEED | 1 | |
| 17 | 17686-K1K-D00 | TUBE SET, PUMP FEED | 1 | |
| 18 | 17687-K1K-D00 | TUBE SET, PUMP RETURN | 1 | |
| 19 | 17724-K0N-D00 | CLIP, TUBE(B18.2) | 2 | |
| 20 | 37800-K1K-D01 | FUEL UNIT | 1 | |
| 21 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 4 | |
| 22 | 90111-KSP-860 | BOLT, SOCKET, 4X21 | 3 | |
| 23 | 91351-K21-900 | O-RING, 39.5X5 | 1 | |
| 25 | 95701-08028-00 | BOLT FLANGE, 8 X 28 | 1 | |
