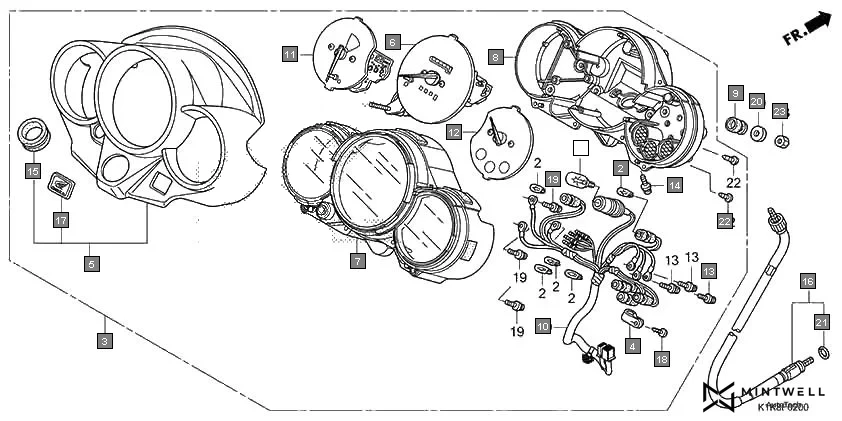

F-2 - METER
HONDA CB Unicorn 160 CBF160AR · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-MB9-871 | BULB, WEDGE BASE(T10) (12V 1.7W)(STANLEY) | 1 | |
| 2 | 34908-MG9-951 | BULB, WEDGE BASE T6.5 (12V - 1.7 W) | 5 | |
| 3 | 37100-K1K-D01 | METER ASSY., COMBINATION(KPH) | 1 | |
| 4 | 37121-ML7-671 | CLAMP | 1 | |
| 5 | 37125-KSP-D21 | COVER ASSY., UPPER | 1 | |
| 6 | 37200-K1K-D01 | SPEEDOMETER COMP. | 1 | |
| 7 | 37211-K1K-D01 | CASE ASSY., UPPER | 1 | |
| 8 | 37212-K1K-D01 | CASE ASSY., LOWER | 1 | |
| 9 | 37215-KCJ-691 | RUBBER, METER SETTING | 3 | |
| 10 | 37223-K1K-D01 | SOCKET COMP. | 1 | |
| 11 | 37250-K1K-D01 | TACHOMETER COMP. | 1 | |
| 12 | 37300-K1K-D01 | FUELMETER COMP. | 1 | |
| 13 | 37305-KE5-008 | SCREW-WASHER, 3X22 | 3 | |
| 14 | 37305-MAW-621 | SCREW, WASH SPL., 4X12 | 2 | |
| 15 | 37312-KTE-910 | GROMMET, COMB SW. | 1 | |
| 16 | 44830-KSP-860 | CABLE COMP., SPEEDOMETER | 1 | |
| 17 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 18 | 90109-MZ5-008 | SCREW, TAPPING, 4 X 14 | 1 | |
| 19 | 90133-SL9-003 | SCREW, WASH, SPL. 3X18 | 3 | |
| 20 | 90525-030-000 | WASHER, PLAIN | 3 | |
| 21 | 91352-671-003 | O-RING, 8.5X1.5(ARAI) | 1 | |
| 22 | 93903-22420 | SCREW,TAPPING,3 X 16 | 6 | |
| 23 | 94001-06000-0S | NUT, HEX., 6 MM | 3 | |
