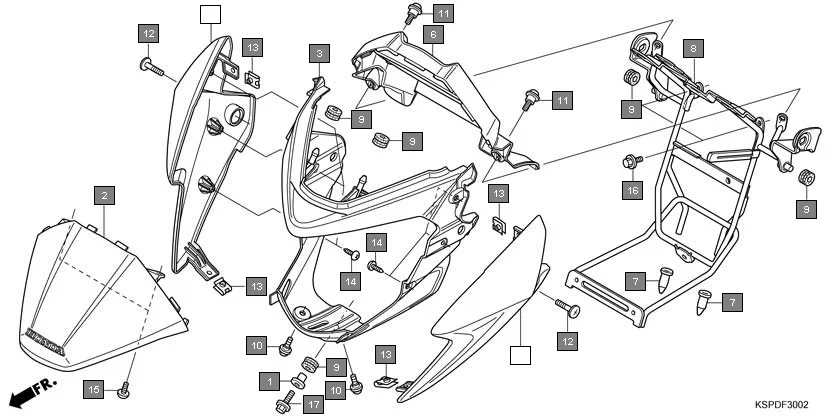

F-30-2 - FRONT COWL(CBF150MB/MC)
HONDA CB Unicorn Dazzler CBF150MC · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 1 | |
| 2 | 61300-KSP-B00ZA | COVER SET A, METER(WL) *NH105* MAT BLACK(#15-#20) | 1 | |
| 3 | 61301-KSP-B00ZA | COWL, FR. CENTER *NH105* MAT BLACK(#15-#20) | 1 | |
| 4 | 61302-KSP-B00ZA | COWL, R. FR. SIDE *NHA84P* PEARL NIGHTSTAR BLACK | 1 | |
| 4 | 61302-KSP-B00ZC | COWL, R. FR. SIDE *R320P* PEARL SIENA RED | 1 | |
| 4 | 61302-KSP-B00ZD | COWL, R. FR. SIDE *Y207M* ARMOUR GOLD METALLIC | 1 | |
| 4 | 61302-KSP-B00ZB | COWL, R. FR. SIDE *NHA95M* SWORD SILVER METALLIC | 1 | |
| 5 | 61303-KSP-B00ZA | COWL, L. FR. SIDE *NHA84P* PEARL NIGHTSTAR BLACK | 1 | |
| 5 | 61303-KSP-B00ZC | COWL, L. FR. SIDE *R320P* PEARL SIENA RED | 1 | |
| 5 | 61303-KSP-B00ZD | COWL, L. FR. SIDE *Y207M* ARMOUR GOLD METALLIC | 1 | |
| 5 | 61303-KSP-B00ZB | COWL, L. FR. SIDE *NHA95M* SWORD SILVER METALLIC | 1 | |
| 6 | 61305-KSP-B00ZA | COVER B, METER *NH105* MAT BLACK(#15-#20) | 1 | |
| 7 | 61312-KCT-690 | BOOT, HEAD LIGHT STAY | 2 | |
| 8 | 61312-KSP-B00 | STAY COMP., FR. COWL | 1 | |
| 9 | 83545-KCJ-690 | RUBBER, SIDE COVER | 5 | |
| 10 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 11 | 90102-GB2-720 | SCREW, PAN, 5X16 | 2 | |
| 12 | 90105-KVN-900 | BOLT, SPECIAL 6 X 22 | 2 | |
| 13 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 14 | 93903-24380 | SCREW TAPPING, 4 X 12 | 6 | |
| 15 | 93903-25220 | SCREW, TAPPING, 5X12 | 2 | |
| 17 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 17 | 95702-06020-07 | BOLT, FLANGE, 6X20 | 1 | |
