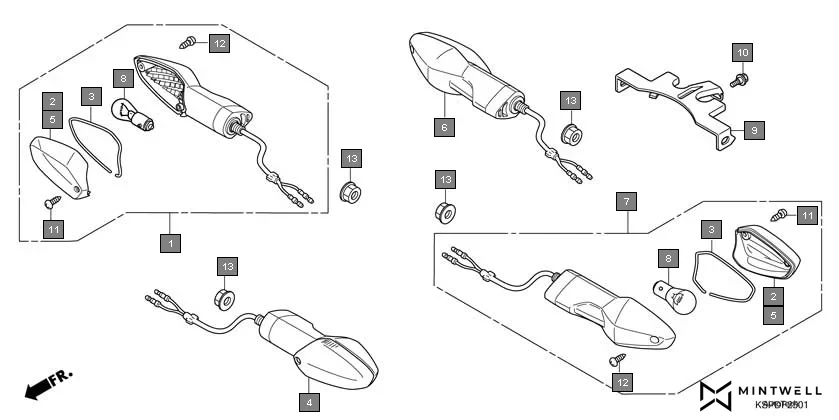

F-25-1 - WINKER(CBF150MB/MC)
HONDA CB Unicorn Dazzler CBF150MC · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-KSP-B01 | WINKER ASSY., R. FR.(12V 21W) | 1 | |
| 2 | 33402-KWF-901 | LENS, R. WINKER (R. FR./L. RR.) | 2 | |
| 3 | 33406-KWF-901 | SEAL GASKET | 4 | |
| 4 | 33450-KSP-B01 | WINKER ASSY., L. FR.(12V 21W) | 1 | |
| 5 | 33452-KWF-901 | LENS, L. WINKER (L. FR./R. RR.) | 2 | |
| 6 | 33600-KSP-B01 | WINKER ASSY., R. RR.(12V 21W) | 1 | |
| 7 | 33650-KSP-B01 | WINKER ASSY., L. RR.(12V 21W) | 1 | |
| 8 | 34904-KRY-971 | BULB, WINKER LIGHT | 4 | |
| 9 | 50186-KSP-B00 | STAY, RR. WINKER | 1 | |
| 11 | 93903-34310 | SCREW TAPPING M4X12 | 4 | |
| 12 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
