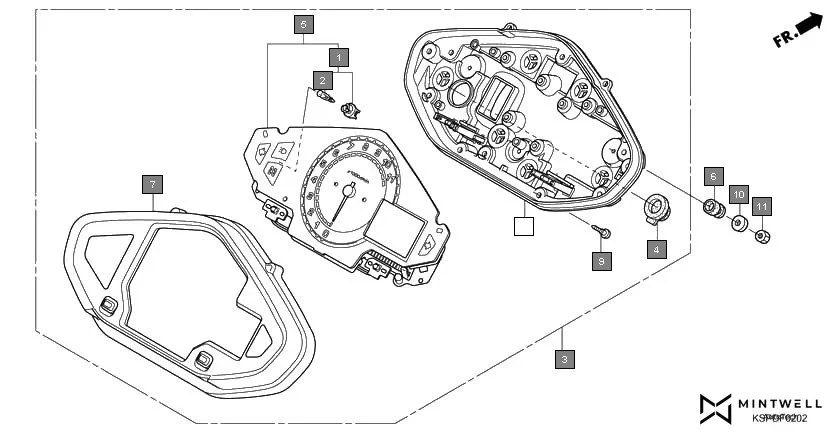

F-2-2 - METER(CBF150MB/MC)
HONDA CB Unicorn Dazzler CBF150MC · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35505-SA5-003 | BULB SOCKET ASSY. | 1 | |
| 2 | 35506-SA5-003 | BULB(14V 1.4W) | 1 | |
| 3 | 37100-KSP-B01 | SPEEDOMETER ASSY. | 1 | |
| 4 | 37105-KRJ-901 | CAP | 1 | |
| 5 | 37200-KSP-B01 | METER COMP., COMBINATION | 1 | |
| 6 | 37215-KCJ-691 | RUBBER, METER SETTING | 3 | |
| 7 | 37300-KSP-B01 | CASE ASSY., UPPER | 1 | |
| 8 | 37400-KSP-B01 | CASE ASSY., UNDER | 1 | |
| 9 | 90101-MCV-000 | SCREW, TAPPING, 3X14 | 18 | |
| 10 | 90525-030-000 | WASHER, PLAIN | 3 | |
| 11 | 94001-06000-0S | NUT, HEX., 6 MM | 3 | |
