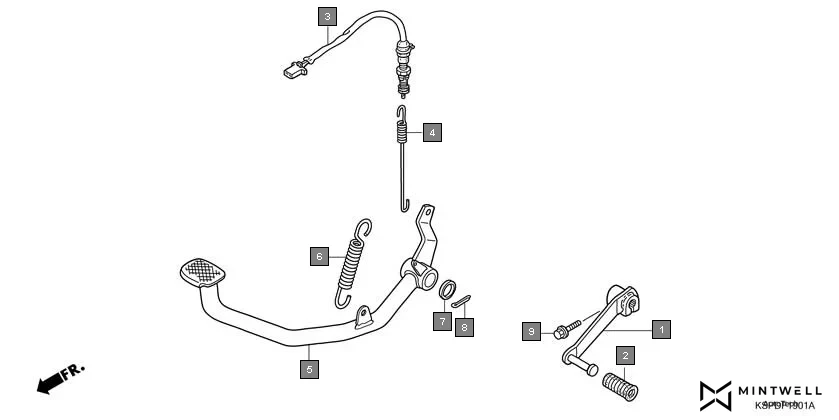

F-19-1 - PEDAL(CBF150MB/MC)
HONDA CB Unicorn Dazzler CBF150MC · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-KSP-B10 | PEDAL, GEAR CHANGE | 1 | |
| 2 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 3 | 35350-KSP-B01 | SWITCH ASSY., RR. STOP | 1 | |
| 4 | 35357-KSP-900 | SPRING, STOP SWITCH | 1 | |
| 5 | 46500-KSP-B00 | PEDAL COMP., BRAKE | 1 | |
| 6 | 46514-KN5-670 | SPG. BRAKE PEDAL | 1 | |
| 7 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 8 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 9 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 1 | |
