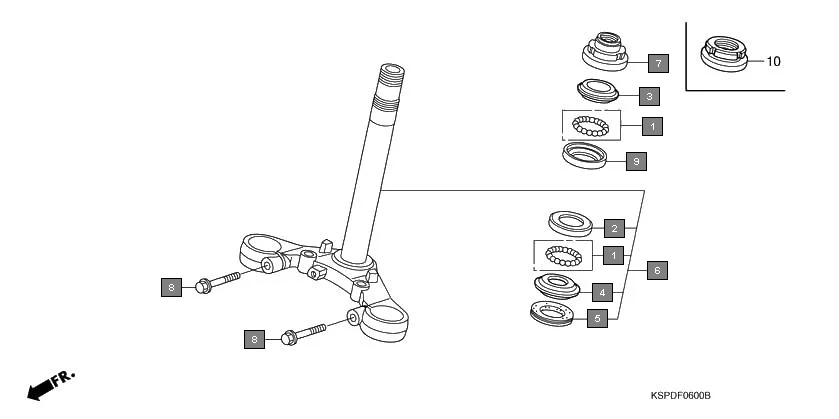

F-6 - STEERING STEM
HONDA CB Unicorn CBF1505 · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06531-KW6-840 | BALL ASSY., STEEL, #8X18 | 2 | |
| 2 | 50301-268-010 | RACE, STEERING TOP BALL | 1 | |
| 3 | 53211-268-010 | RACE, STEERING TOP CONE | 1 | |
| 4 | 53212-200-000 | RACE, STEERING BOTTOM CONE | 1 | |
| 5 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 | |
| 6 | 53219-KSP-900 | STEM SUB ASSY., STEERING | 1 | |
| 7 | 53220-KSP-900 | THREAD COMP., STEERING HEAD TOP | 1 | |
| 8 | 95701-08035-07 | BOLT, FLANGE, 8X35 | 2 | |
