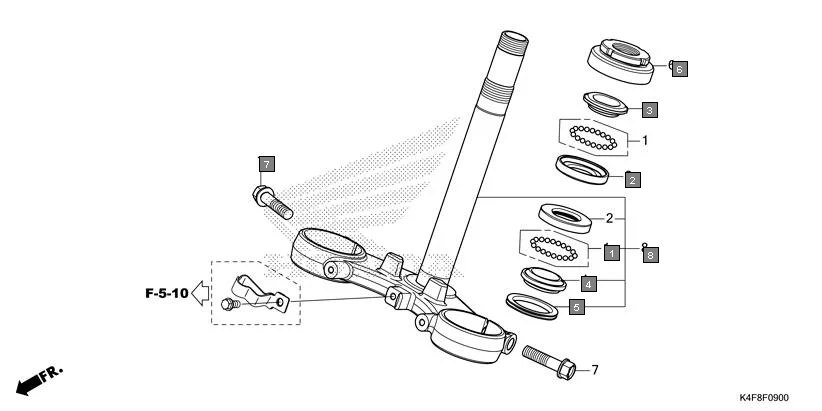

F-9 - STEERING STEM
HONDA CB125 Hornet CBF125ZT · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06531-KW6-840 | BALL ASSY., STEEL, #8X18 | 2 | |
| 2 | 50301-KTR-900 | RACE, STEERING BALL | 2 | |
| 3 | 53211-268-010 | RACE, STEERING TOP CONE | 1 | |
| 4 | 53212-200-000 | RACE, STEERING BOTTOM CONE | 1 | |
| 5 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 | |
| 6 | 53220-K56-HA0 | THREAD COMP., STEERING HEAD TOP | 1 | |
| 7 | 96300-10040-07 | BOLT, FLANGE, 10X40 | 2 | |
| 8 | 53219-K4F-D00 | STEM SUB ASSY., STEERING | 1 | |
