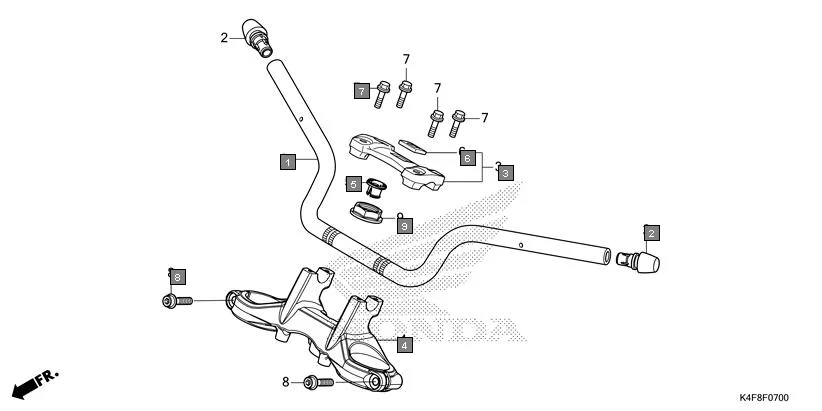

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA CB125 Hornet CBF125ZT · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-K4F-D00 | PIPE, STEERING HANDLE | 1 | |
| 2 | 53105-K98-E20 | END, STEERING HANDLE | 2 | |
| 3 | 53130-K0N-D01ZB | HOLDER COMP., HANDLE UPPER *NH105* MAT BLACK(#15-#20) | 1 | |
| 4 | 53230-K4F-D00ZA | BRIDGE, FORK TOP *NH105* MAT BLACK(#15-#20) | 1 | |
| 5 | 53232-K43-D00 | CAP, STEERING NUT | 1 | |
| 6 | 86150-KWS-602 | EMBLEM, PRODUCT(SJS) | 1 | |
| 7 | 90117-383-000 | BOLT, FLANGE, 6X28 | 4 | |
| 8 | 90160-K1L-D00 | BOLT, FLANGE SOCKET, 8X35 | 2 | |
| 9 | 90304-K43-D00 | NUT, STEERING STEM | 1 | |
