F-44-FRONT COVER

HONDACB125 Hornet CBF125ZT · 15 parts

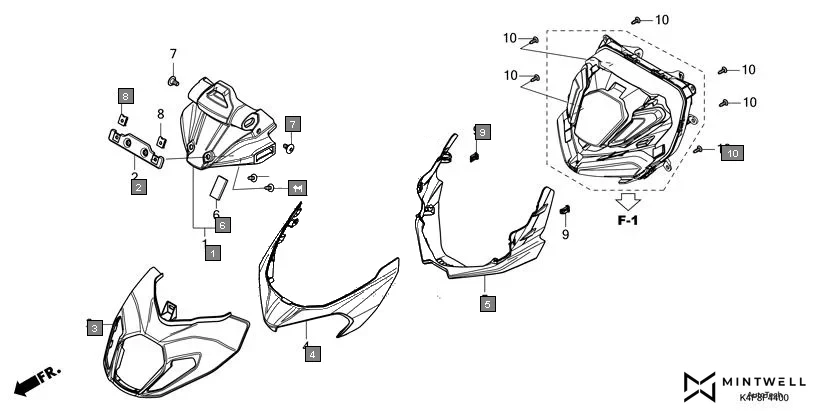

F-44 FRONT COVER assembly diagram for HONDA CB125 Hornet CBF125ZT

Parts in This Assembly (15)

Ref #Part NumberDescriptionQty
161302-K4F-D00COVER ASSY., METER1
261303-K2K-D00BRACKET, FR. NUMBER PLATE1
361303-K4F-D00ZACOVER, FR. UPPER *PB123PA* PEARL SIREN BLUE-A1
361303-K4F-D00ZBCOVER, FR. UPPER *NHB05P* PEARL IGNEOUS BLACK1
461305-K4F-D00ZACOVER, HEADLIGHT CENTER *Y196* LEMON ICE YELLOW1
461305-K4F-D00ZBCOVER, HEADLIGHT CENTER *R393* SPORTS RED 21
461305-K4F-D00ZCCOVER, HEADLIGHT CENTER *NHB05P* PEARL IGNEOUS BLACK1
461305-K4F-D00ZDCOVER, HEADLIGHT CENTER *B195M* SPORTY BLUE METALLIC1
561307-K4F-D00COVER, FR. LOWER1
661308-K43-900SPONGE, FR. COWL RUBBER1
790106-K26-900SCREW, PAN, 6X122
890320-KTE-600NUT, SPRING, 5MM2
990651-K14-A31CLIP, SLIDE2
1093903-24320SCREW, TAPPING, 4X126
1193903-25220SCREW, TAPPING, 5X122
