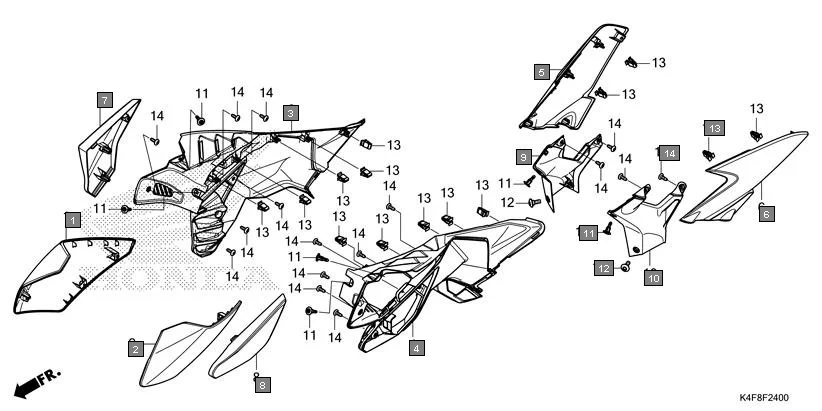

F-24 - SIDE COVER
HONDA CB125 Hornet CBF125ZT · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50240-K4F-D00ZA | SHROUD SET, R. GARNISH(WL) *TYPE4* | 1 | |
| 1 | 50240-K4F-D00ZB | SHROUD SET, R. GARNISH(WL) *TYPE3* | 1 | |
| 1 | 50240-K4F-D00ZC | SHROUD SET, R. GARNISH(WL) *TYPE2* | 1 | |
| 1 | 50240-K4F-D00ZD | SHROUD SET, R. GARNISH(WL)*TYPE1* | 1 | |
| 2 | 50250-K4F-D00ZA | SHROUD SET, L. GARNISH(WL) *TYPE4* | 1 | |
| 2 | 50250-K4F-D00ZB | SHROUD SET, L. GARNISH(WL) *TYPE3* | 1 | |
| 2 | 50250-K4F-D00ZC | SHROUD SET, L. GARNISH(WL) *TYPE2* | 1 | |
| 2 | 50250-K4F-D00ZD | SHROUD SET, L. GARNISH(WL) *TYPE1* | 1 | |
| 3 | 83531-K4F-D00 | COVER A, R. SIDE | 1 | |
| 4 | 83541-K4F-D00 | COVER A, L. SIDE | 1 | |
| 5 | 83560-K4F-D00ZA | COVER SET B, R. SIDE(WL) *TYPE1* | 1 | |
| 5 | 83560-K4F-D00ZB | COVER SET B, R. SIDE(WL)*TYPE4* | 1 | |
| 5 | 83560-K4F-D00ZC | COVER SET B, R. SIDE(WL)*TYPE3* | 1 | |
| 5 | 83560-K4F-D00ZD | COVER SET B, R. SIDE(WL) *TYPE2* | 1 | |
| 6 | 83570-K4F-D00ZA | COVER SET B, L. SIDE(WL) *TYPE1* | 1 | |
| 6 | 83570-K4F-D00ZB | COVER SET B, L. SIDE(WL) *TYPE4* | 1 | |
| 6 | 83570-K4F-D00ZC | COVER SET B, L. SIDE(WL) *TYPE3* | 1 | |
| 6 | 83570-K4F-D00ZD | COVER SET B, L. SIDE(WL) *TYPE2* | 1 | |
| 7 | 83581-K4F-D00ZA | COVER C, R. SIDE *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 7 | 83581-K4F-D00ZB | COVER C, R. SIDE *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 8 | 83591-K4F-D00ZA | COVER C, L. SIDE *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 8 | 83591-K4F-D00ZB | COVER C, L. SIDE *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 9 | 83601-K4F-D00ZA | COVER D, R. SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 10 | 83602-K4F-D00ZA | COVER D, L. SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 11 | 90116-K3V-N01 | RIVET, PUSH, 6MM | 6 | |
| 12 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 2 | |
| 13 | 90666-K59-A11 | CLIP, SNAP FITTING(PO) | 14 | |
| 14 | 93903-24380 | SCREW TAPPING, 4 X 12 | 16 | |
