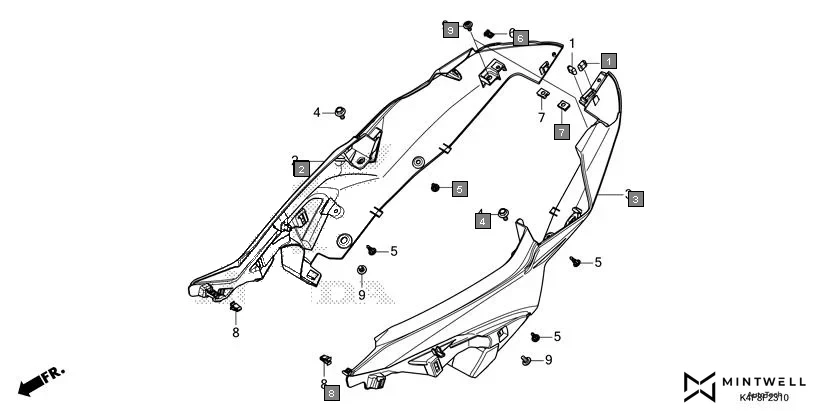

F-23-10 - REAR COWL
HONDA CB125 Hornet CBF125ZT · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77267-K2P-V60 | RUBBER, COWL | 2 | |
| 2 | 77271-K4F-D00ZA | COWL, R. RR. *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 2 | 77271-K4F-D00ZB | COWL, R. RR.*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 3 | 77281-K4F-D00ZA | COWL, L. RR. *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 3 | 77281-K4F-D00ZB | COWL, R. RR.*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 4 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 5 | 90116-K3V-N01 | RIVET, PUSH, 6MM | 4 | |
| 6 | 90651-K14-A31 | CLIP, SLIDE | 1 | |
| 7 | 90654-K0L-DQ0 | NUT, CLIP, 5MM | 2 | |
| 8 | 90666-K59-A11 | CLIP, SNAP FITTING(PO) | 2 | |
| 9 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
