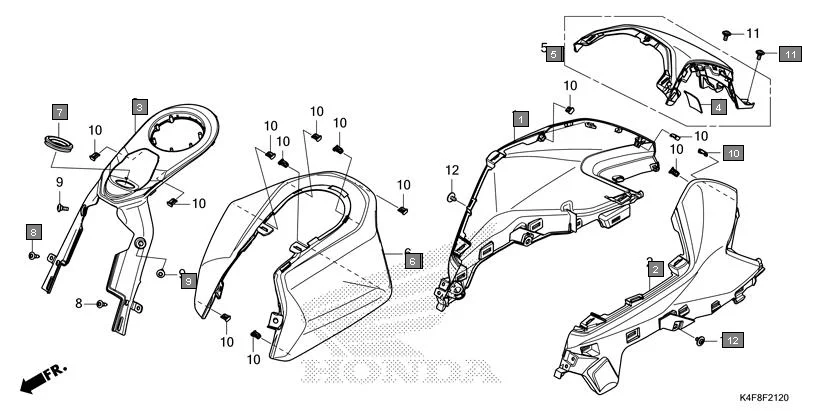

F-21-20 - TOP SHELTER
HONDA CB125 Hornet CBF125ZT · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64411-K4F-D00ZA | COVER, R. FUEL TANK *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 1 | 64411-K4F-D00ZB | COVER, R. FUEL TANK*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 2 | 64421-K4F-D00ZA | COVER, L. FUEL TANK *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 2 | 64421-K4F-D00ZB | COVER, L. FUEL TANK*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 3 | 64431-K4F-D00 | COVER A, FUEL TANK CENTER | 1 | |
| 4 | 64432-K43-900 | SPONGE, FUEL TANK CENTER COVER RUBBER | 1 | |
| 5 | 64441-K4F-D00ZA | COVER, FUEL TANK CENTER(B) *Y196* LEMON ICE YELLOW | 1 | |
| 5 | 64441-K4F-D00ZB | COVER, FUEL TANK CENTER(B)*R393* SPORTS RED 2 | 1 | |
| 5 | 64441-K4F-D00ZC | COVER, FUEL TANK CENTER(B)*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 5 | 64441-K4F-D00ZD | COVER, FUEL TANK CENTER(B)*B195M* SPORTY BLUE METALLIC | 1 | |
| 6 | 64450-K4F-D00ZA | COVER SET, FUEL TANK(C) *TYPE4* | 1 | |
| 6 | 64450-K4F-D00ZB | COVER SET, FUEL TANK(C)*TYPE3* | 1 | |
| 6 | 64450-K4F-D00ZC | COVER SET, FUEL TANK(C)*TYPE2* | 1 | |
| 6 | 64450-K4F-D00ZD | COVER SET, FUEL TANK(C)*TYPE1* | 1 | |
| 7 | 64460-K1L-D00 | COVER, KEY | 1 | |
| 11 | 91509-K89-V00 | SCREW, PAN, 5X11.5 | 2 | |
| 12 | 93894-05010-07 | SCREW-WASHER, 5X10 | 2 | |
