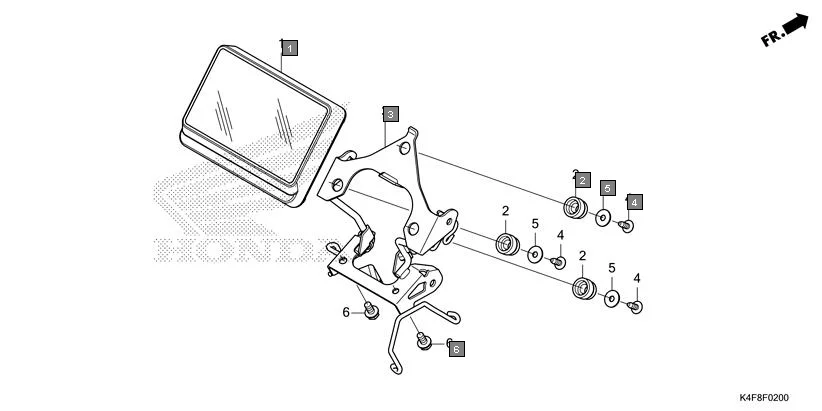

F-2-METER
HONDACB125 Hornet CBF125ZT · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K4F-D01 | METER ASSY., COMBINATION(KPH) | 1 | |
| 2 | 37215-KZZ-900 | RUBBER, METER SETTING | 3 | |
| 3 | 61312-K4F-D00 | STAY, FR. COWL UPPER | 1 | |
| 4 | 93913-25380 | SCREW, TAPPING, 5X14(PO) | 3 | |
| 5 | 94103-05700 | WASHER, PLAIN, 5MM | 3 | |
| 6 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 |
