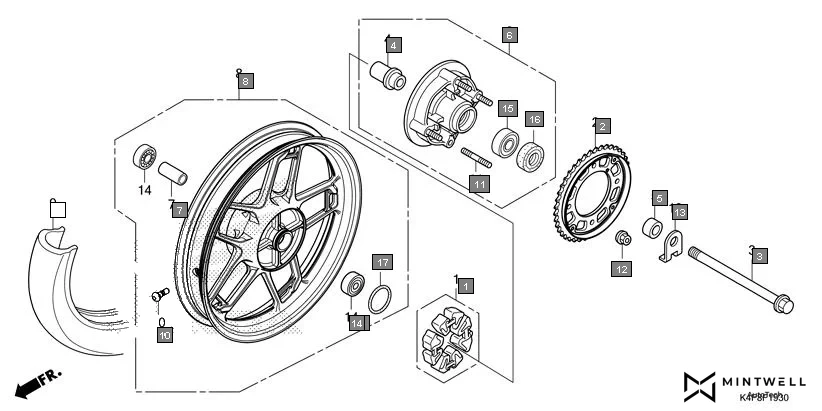

F-19-30 - REAR WHEEL
HONDA CB125 Hornet CBF125ZT · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-K67-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 41200-K4F-D00 | SPROCKET COMP., FINAL DRIVEN (41T) | 1 | |
| 3 | 42301-K4F-D00 | AXLE, RR. WHEEL | 1 | |
| 4 | 42303-K0N-D00 | SLEEVE, RR. WHEEL | 1 | |
| 6 | 42615-K0N-D00 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 7 | 42620-K4F-D00 | COLLAR, RR. AXLE DISTANCE | 1 | |
| 8 | 42650-K4F-D00ZA | WHEEL SUB ASSY., RR. *Y196* LEMON ICE YELLOW | 1 | |
| 8 | 42650-K4F-D00ZB | WHEEL SUB ASSY., RR. *Y196* *YR325M* PYRITE BROWN METALLIC | 1 | |
| 8 | 42650-K4F-D00ZC | WHEEL SUB ASSY., RR. *Y196* *R321* SPORTS RED | 1 | |
| 8 | 42650-K4F-D00ZD | WHEEL SUB ASSY., RR. *Y196* *B195M* SPORTY BLUE METALLIC | 1 | |
| 9 | 42711-KSP-B01 | TIRE, RR.(MRF)(110/80-17 57P) | 1 | |
| 11 | 90128-KTE-910 | BOLT,STUD,8X20 | 4 | |
| 12 | 90309-KTE-911 | NUT,FLG PT 8MM | 4 | |
| 15 | 91081-KYJ-711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 | |
| 16 | 91251-KGH-901 | DUST SEAL,27X40X4.5 | 1 | |
| 17 | 91304-704-000 | O-RING 42 MM | 1 | |
