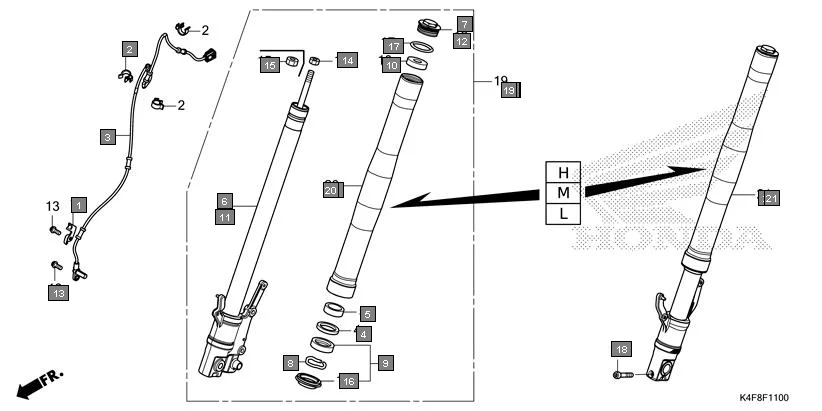

F-11 - FRONT FORK
HONDA CB125 Hornet CBF125ZT · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32906-K4F-D00 | STAY, ABS CORD | 1 | |
| 2 | 38517-MGE-003 | CLAMP, ABS CORD(D12) | 3 | |
| 3 | 38520-K4F-D01 | SENSOR, FR. WHEEL SPEED | 1 | |
| 4 | 51412-461-003 | RING, BACK UP | 2 | |
| 5 | 51414-K1L-D81 | BUSH, GUIDE | 2 | |
| 6 | 51425-K4F-D01 | DAMPER COMP., R. FR. | 1 | |
| 7 | 51445-K1L-D81 | BOLT, R. FR. FORK | 1 | |
| 8 | 51447-KR6-003 | RING, OIL SEAL STOPPER | 2 | |
| 9 | 51490-KWL-003 | SEAL SET, FR. FORK | 2 | |
| 10 | 51517-K1L-D01 | RUBBER, STOPPER | 2 | |
| 11 | 51525-K1L-D81 | DAMPER COMP., L. FR. | 1 | |
| 12 | 51545-K1L-D81 | BOLT, L. FR. FORK | 1 | |
| 13 | 90106-K43-D20 | BOLT, FLANGE, 6X14(SH) | 2 | |
| 14 | 90301-K1L-D01 | NUT, HEX. | 1 | |
| 15 | 90301-K1L-D81 | NUT, HEX.(RIGHT HAND SIDE) | 1 | |
| 16 | 91254-KAZ-003 | SEAL, DUST | 2 | |
| 17 | 91356-MW0-003 | O-RING, 37.2X2.4(SHOWA) | 2 | |
| 18 | 96600-08040-00 | BOLT, SOCKET, 8X40 | 1 | |
| 19 | 51400-K4F-309 | FORK ASSY., R. FR.(HITACHI) (H,DARK GOLD) | 1 | |
| 19 | 51400-K4F-405 | FORK ASSY., R. FR.(HITACHI) (M,GOLD) | 1 | |
| 19 | 51400-K4F-406 | FORK ASSY., R. FR.(HITACHI) (L,LIGHT GOLD) | 1 | |
| 20 | 51410-K1L-309 | TUBE, OUTER(H,DARK GOLD) | 2 | |
| 20 | 51410-K1L-405 | TUBE, OUTER(M,GOLD) | 2 | |
| 20 | 51410-K1L-406 | TUBE, OUTER(L,LIGHT GOLD) | 2 | |
| 21 | 51500-K1L-309 | FORK ASSY., L. FR.(SHOWA) (H,DARK GOLD) | 1 | |
| 21 | 51500-K1L-405 | FORK ASSY., L. FR.(SHOWA) (M,GOLD) | 1 | |
| 21 | 51500-K1L-406 | FORK ASSY., L. FR.(SHOWA) (L,LIGHT GOLD) | 1 | |
