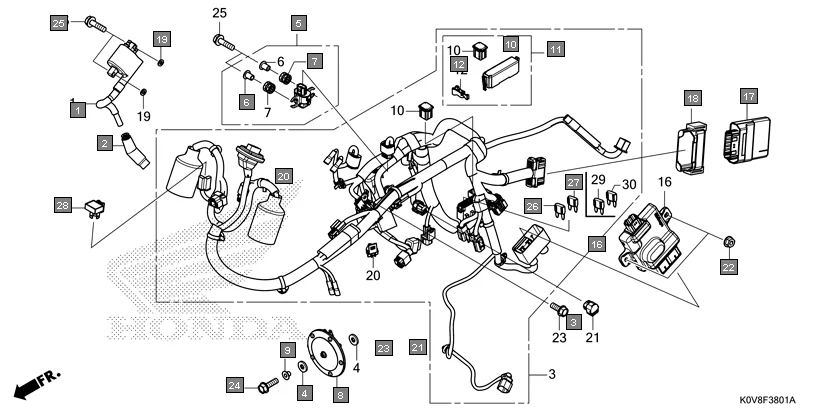

F-38-1 - WIRE HARNESS(2)
HONDA CB Shine/ Shine 125 CBF125S · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30500-K0V-AJ1 | COIL ASSY., IGNITION(JAGDISH) | 1 | |
| 1 | 30500-K0V-A01 | COIL ASSY., IGNITION(WINGS) | 1 | |
| 2 | 30700-K0V-AJ1 | CAP ASSY., NOISE SUPPRESSOR (ANU) | 1 | |
| 2 | 30700-KTE-D01 | CAP ASSY., NOISE SUPPRESSOR (MINDA) | 1 | |
| 3 | 32100-K0V-AJ0 | HARNESS, WIRE(MOTHERSON SUMI) | 1 | |
| 3 | 32100-K0V-BL0 | HARNESS, WIRE(DHOOT) | 1 | |
| 3 | 32100-K0V-AK0 | HARNESS, WIRE(MOTHERSON SUMI) | 1 | |
| 3 | 32100-K0V-BN0 | HARNESS, WIRE(DHOOT) | 1 | |
| 4 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 5 | 35160-KRE-G01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 6 | 35162-KRE-G00 | COLLAR | 2 | |
| 7 | 35163-KRE-G00 | GROMMET | 2 | |
| 8 | 38110-K0N-D81 | HORN COMP. | 1 | |
| 8 | 38110-K0V-AC1 | HORN COMP.(NIKKO) | 1 | |
| 9 | 38117-KYJ-T00 | COLLAR, HORN SETTING | 1 | |
| 10 | 38211-SNA-A21 | FUSE, BLOCK(40A) | 2 | |
| 11 | 38230-K0V-AJ0 | COVER SET, FUSE | 1 | |
| 12 | 38235-K0N-D81 | PULLER, FUSE | 1 | |
| 16 | 38760-K0V-AJ1 | CONTROL UNIT, A.C. GENERATOR STARTER | 1 | |
| 17 | 38770-K0V-AJ1 | PGM-FI UNIT | 1 | |
| 18 | 38771-K0N-DJ0 | CUSHION, PGM-FI UNIT | 1 | |
| 19 | 90502-198-900 | WASHER , BRAKE ROD | 2 | |
| 20 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 1 | |
| 21 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 26 | 98200-40750 | FUSE, MINI(7.5A) | 4 | |
| 27 | 98200-41500 | FUSE, MINI(15A) | 2 | |
| 28 | 38301-K0L-DK1 | RELAY COMP., WINKER | 1 | |
| 28 | 38301-K0V-A01 | RELAY COMP., WINKER(DHOOT) | 1 | |
