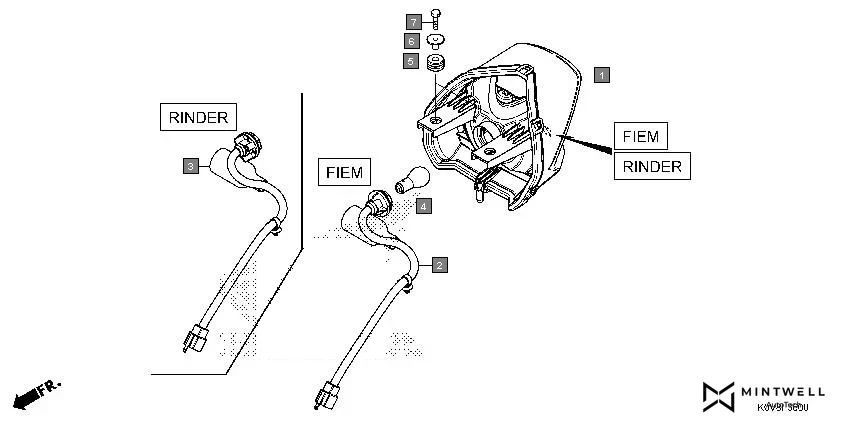

F-36 - TAILLIGHT
HONDA CB Shine/ Shine 125 CBF125S · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33703-K0V-A01 | TAILLIGHT COMP.(FIEM) | 1 | |
| 1 | 33703-K0V-B01 | TAILLIGHT COMP.(RINDER) | 1 | |
| 2 | 33705-K0V-A01 | SOCKET COMP.(FIEM) | 1 | |
| 3 | 33705-K0V-B01 | SOCKET COMP.(RINDER) | 1 | |
| 4 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 5 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 2 | |
| 6 | 61104-KM7-910 | COLLAR,FAIRING | 2 | |
| 7 | 92101-05025-0A | BOLT, HEX., 5X25 | 2 | |
