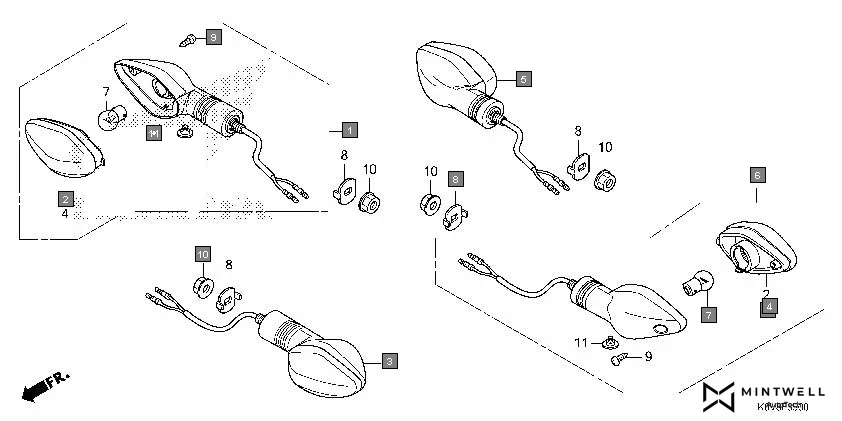

F-35 - WINKER
HONDA CB Shine/ Shine 125 CBF125S · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-KWS-901 | WINKER ASSY., R. FR.(12V 10W) | 1 | |
| 2 | 33403-KWS-901 | LENS COMP., R.(R. FR./L. RR.) | 2 | |
| 3 | 33450-KWS-901 | WINKER ASSY., L. FR.(12V 10W) | 1 | |
| 4 | 33453-KWS-901 | LENS COMP., L.(L. FR./R. RR.) | 2 | |
| 5 | 33600-K0V-A01 | WINKER ASSY., R. RR.(12V 10W) | 1 | |
| 6 | 33650-K21-901 | WINKER ASSY., L. RR.(12V 10W) | 1 | |
| 7 | 34930-KWA-930 | BULB, WINKER(12V 10W)(AMBER) | 4 | |
| 8 | 61315-GGJ-700 | STAY, WINKER | 4 | |
| 9 | 93901-34380 | SCREW TAPPING 4X12 | 4 | |
| 11 | 90380-MB2-000 | SCREW, SPECIAL, 6 X 8 | 4 | |
