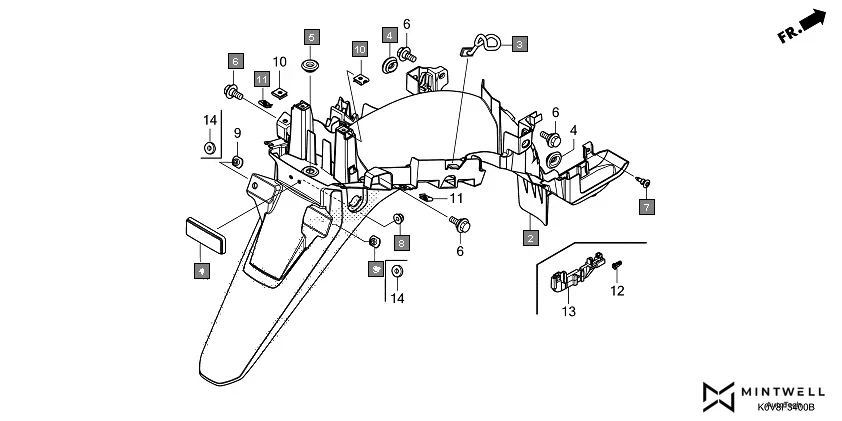

F-34 - REAR FENDER
HONDA CB Shine/ Shine 125 CBF125S · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 2 | 80101-K0V-A00 | FENDER, RR. | 1 | |
| 3 | 80123-K38-900 | BAND, TOOL | 1 | |
| 4 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 5 | 83601-MN5-000 | GROMMET SIDE COVER | 1 | |
| 7 | 90116-SP0-003 | CLIP, BUMPER SEAL | 1 | |
| 9 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 10 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 11 | 90344-KTE-910 | NUT, CLIP, 4MM | 2 | |
