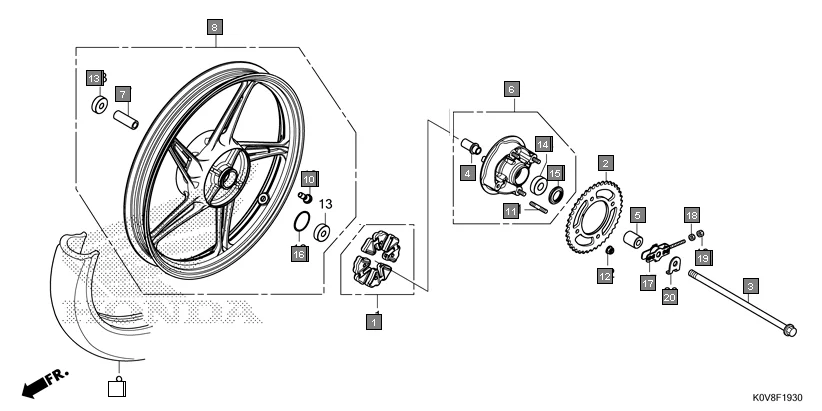

F-19-30 - REAR WHEEL
HONDA CB Shine/ Shine 125 CBF125S · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-K67-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 41201-K0N-D00 | SPROCKET, FINAL DRIVEN(41T) | 1 | |
| 3 | 42301-K0N-D00 | AXLE, RR. WHEEL | 1 | |
| 4 | 42303-K0N-D00 | SLEEVE, RR. WHEEL | 1 | |
| 5 | 42304-K0N-D00 | COLLAR, RR. WHEEL SIDE | 1 | |
| 6 | 42615-K0N-D00 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 7 | 42620-KTE-D80 | COLLAR, RR. AXLE DISTANCE | 1 | |
| 8 | 42650-KTE-D80ZA | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 9 | 42711-K55-951 | TIRE, RR.(CEAT) (80/100-18 M/C 54P) | 1 | |
| 9 | 42711-K67-931 | TIRE, RR.(MRF) (80/100-18 M/C 54P) | 1 | |
| 9 | 42711-K67-942 | TIRE, RR.(TVS) (80/100-18 M/C 54P) | 1 | |
| 11 | 90128-KTE-910 | BOLT,STUD,8X20 | 4 | |
| 12 | 90309-KTE-911 | NUT,FLG PT 8MM | 4 | |
| 14 | 91081-KYJ-711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 | |
| 15 | 91251-KGH-901 | DUST SEAL,27X40X4.5 | 1 | |
| 16 | 91304-704-000 | O-RING 42 MM | 1 | |
