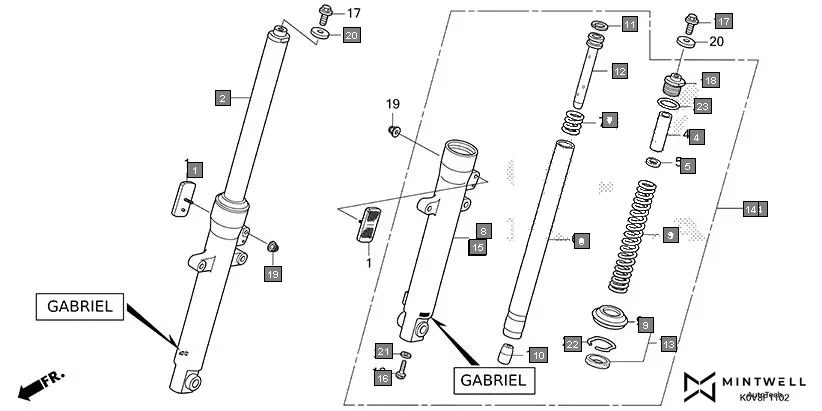

F-11-2 - FRONT FORK(GABRIEL)
HONDA CB Shine/ Shine 125 CBF125S · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 51400-K0N-CB1 | FORK ASSY., R. FR.(GABRIEL) | 1 | |
| 2 | 51400-K0N-C91 | FORK ASSY., R. FR.(GABRIEL) | 1 | |
| 3 | 51401-K14-C01 | SPRING, FR. FORK(GABRIEL) | 2 | |
| 4 | 51403-K0N-DJ1 | COLLAR, SPRING(GABRIEL) | 2 | |
| 5 | 51404-K14-C01 | JOINT, SPRING(GABRIEL) | 2 | |
| 6 | 51410-K14-C01 | PIPE COMP., FR. FORK(GABRIEL). | 2 | |
| 7 | 51412-K14-C01 | SPRING, REBOUND(GABRIEL) | 2 | |
| 8 | 51420-K0N-CB1 | CASE, R. FR. BOTTOM(GABRIEL) | 1 | |
| 8 | 51420-K0N-C91 | CASE, R. FR. BOTTOM(GABRIEL) | 1 | |
| 9 | 51425-K14-C01 | SEAL, DUST(GABRIEL) | 2 | |
| 10 | 51432-K14-C01 | PIECE, OIL LOCK(GABRIEL) | 2 | |
| 11 | 51437-K14-C01 | RING, PISTON(GABRIEL) | 2 | |
| 12 | 51440-K0N-DJ1 | PIPE, SEAT(GABRIEL) | 2 | |
| 13 | 51490-K14-C01 | SEAL SET, FR. FORK(GABRIEL) | 2 | |
| 14 | 51500-K0N-CB1 | FORK ASSY., L. FR.(GABRIEL) | 1 | |
| 14 | 51500-K0N-C91 | FORK ASSY., L. FR.(GABRIEL) | 1 | |
| 15 | 51520-K0N-CB1 | CASE, L. FR. BOTTOM(GABRIEL) | 1 | |
| 15 | 51520-K0N-C91 | CASE, L. FR. BOTTOM(GABRIEL) | 1 | |
| 16 | 90116-K14-C01 | BOLT, SOCKET, 8MM(GABRIEL) | 2 | |
| 17 | 90123-K0N-DU0 | BOLT, FR. FORK | 2 | |
| 18 | 90123-K14-C01 | BOLT A, FR. FORK(GABRIEL) | 2 | |
| 19 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 20 | 90521-K0N-DU0 | WASHER, 10.3MM | 2 | |
| 21 | 90544-K14-C01 | WASHER, SPECIAL, 8MM(GABRIEL) | 2 | |
| 22 | 90651-K14-C01 | RING, OIL SEAL STOP(GABRIEL) | 2 | |
| 23 | 91351-K14-C01 | O-RING(GABRIEL) | 2 | |
