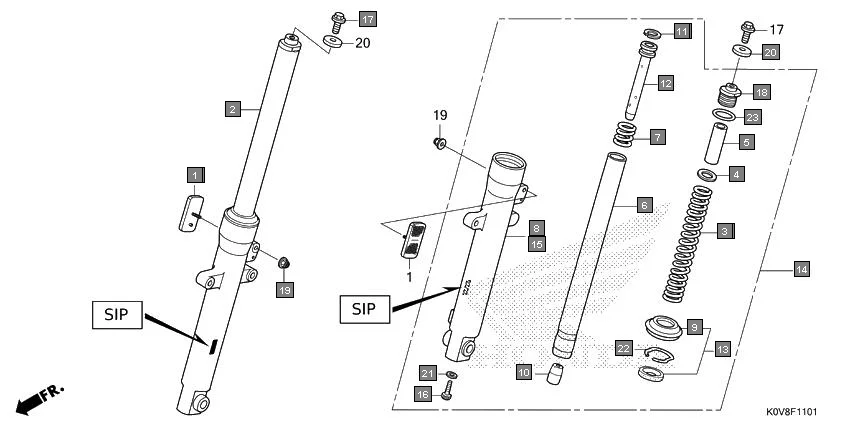

F-11-1 - FRONT FORK(SHOWA)
HONDA CB Shine/ Shine 125 CBF125S · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 51400-K0V-A01 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 2 | 51400-K0V-A11 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 3 | 51401-K14-901 | SPRING, FR. FORK(SHOWA) | 2 | |
| 4 | 51403-447-731 | PLATE, SPRING JOINT(SHOWA) | 2 | |
| 5 | 51403-KCC-901 | COLLAR, SPRING(SHOWA) | 2 | |
| 6 | 51410-K0V-A01 | PIPE COMP., FR. FORK. (SHOWA) | 2 | |
| 7 | 51412-KAG-901 | SPRING, REBOUND(SHOWA) | 2 | |
| 8 | 51420-K0V-A01 | CASE, R. FR. BOTTOM(SHOWA) | 1 | |
| 8 | 51420-K0V-A11 | CASE, R. FR. BOTTOM(SHOWA) | 1 | |
| 9 | 51425-961-013 | DUST SEAL(SHOWA) | 2 | |
| 10 | 51432-KST-901 | PIECE, OIL LOCK | 2 | |
| 11 | 51437-KVN-901 | RING, PISTON | 2 | |
| 12 | 51440-K14-901 | PIPE, SEAT | 2 | |
| 13 | 51490-KWS-901 | SEAL SET, FR. FORK | 2 | |
| 14 | 51500-K0V-A01 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 14 | 51500-K0V-A11 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 15 | 51520-K0V-A01 | CASE, L. FR. BOTTOM(SHOWA) | 1 | |
| 15 | 51520-K0V-A11 | CASE, L. FR. BOTTOM(SHOWA) | 1 | |
| 16 | 90116-KAG-901 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 18 | 90123-KSP-901 | BOLT, A FRONT FORK | 2 | |
| 21 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 2 | |
| 22 | 90601-GF5-731 | RING OIL SEAL STOP | 2 | |
| 23 | 91356-KAG-901 | O-RING(SHOWA) | 2 | |
