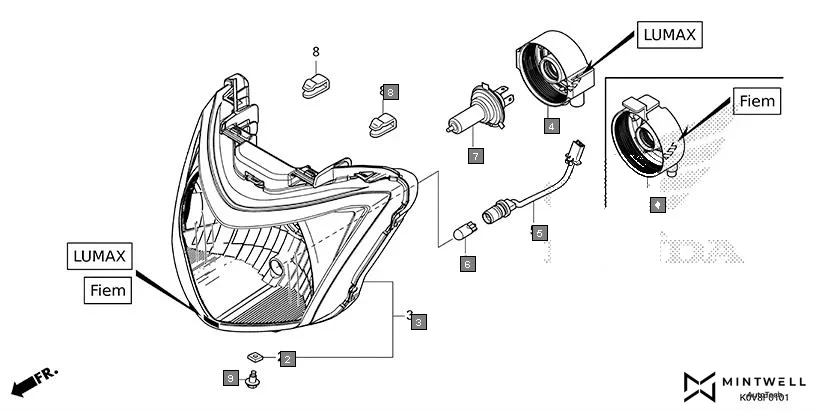

F-1-1 - HEADLIGHT(2)
HONDA CB Shine/ Shine 125 CBF125S · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33112-KWS-B01 | COVER ASSY., RUBBER(FIEM) | 1 | |
| 3 | 33120-K0V-AQ1 | HEADLIGHT UNIT(FIEM) | 1 | |
| 3 | 33120-K0V-BV1 | HEADLIGHT UNIT(LUMAX) | 1 | |
| 5 | 33150-K0V-AQ1 | SOCKET COMP., POSITION LIGHT (FIEM) | 1 | |
| 5 | 33150-K0V-BV1 | SOCKET COMP., POSITION LIGHT (LUMAX) | 1 | |
| 6 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
