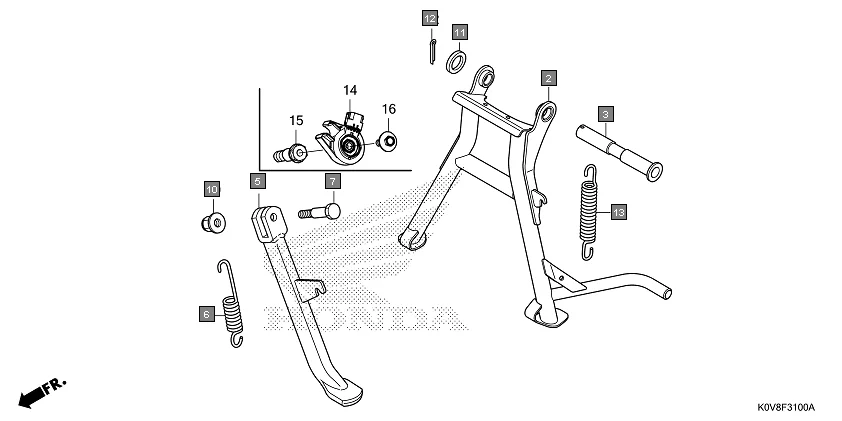

F-31 - STAND
HONDA CB Shine/ Shine 125 CBF125N · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 50500-K0N-D00 | STAND COMP., MAIN | 1 | |
| 3 | 50526-K0N-D00 | SHAFT, MAIN STAND PIVOT | 1 | |
| 5 | 50530-K0N-D20 | BAR COMP., SIDE STAND | 1 | |
| 6 | 50541-K0N-D00 | SPRING, SIDE STAND | 1 | |
| 7 | 90107-GN1-010 | SCREW SIDE STAND PIVOT | 1 | |
| 10 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 11 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 12 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 13 | 95014-71702 | SPRING G MAIN STAND | 1 | |
