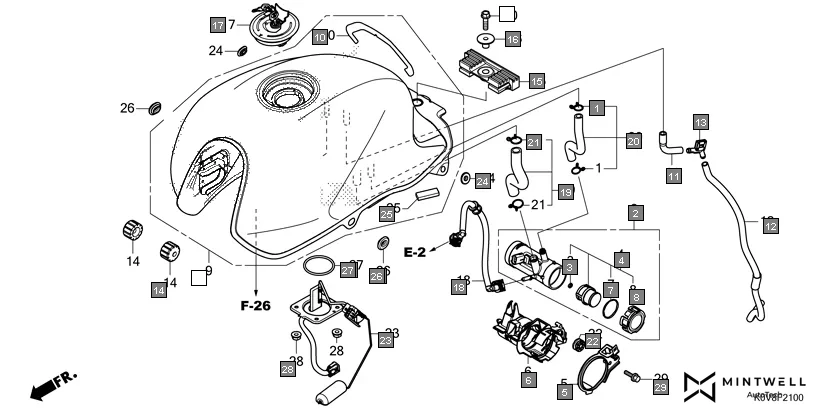

F-21 - FUEL TANK/FUEL PUMP
HONDA CB Shine/ Shine 125 CBF125N · 37 parts
Parts in This Assembly (37)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15771-KV6-000 | CLIP, OIL DRAIN TUBE | 2 | |
| 2 | 16700-K0Y-D01 | PUMP UNIT, FUEL | 1 | |
| 3 | 16706-KVB-S51 | O-RING(P7) | 1 | |
| 4 | 16707-K0Y-D01 | FILTER SET | 1 | |
| 5 | 16712-K0V-A00 | STAY COMP., FUEL PUMP | 1 | |
| 6 | 16714-K0V-A00 | CASE, FUEL PUMP | 1 | |
| 7 | 16723-K0Y-D01 | O-RING, FILTER | 1 | |
| 8 | 16724-K0Y-D01 | COVER, FILTER | 1 | |
| 9 | 17500-K0V-A00ZA | TANK ASSY., FUEL *TYPE7* | 1 | |
| 9 | 17500-K0V-A00ZB | TANK ASSY., FUEL *TYPE6* | 1 | |
| 9 | 17500-K0V-A00ZC | TANK ASSY., FUEL *TYPE5* | 1 | |
| 9 | 17500-K0V-A00ZD | TANK ASSY., FUEL *TYPE4* | 1 | |
| 9 | 17500-K0V-A00ZE | TANK ASSY., FUEL *TYPE3* | 1 | |
| 9 | 17500-K0V-A00ZF | TANK ASSY., FUEL *TYPE2* | 1 | |
| 9 | 17500-K0V-A00ZG | TANK ASSY., FUEL *TYPE1* | 1 | |
| 10 | 17506-K0V-A00 | FILM, TANK PROTECTOR | 1 | |
| 11 | 17571-K0V-A00 | TUBE A, DRAIN | 1 | |
| 12 | 17572-K0N-D00 | TUBE B, DRAIN | 1 | |
| 13 | 17573-K0N-D00 | JOINT, DRAIN | 1 | |
| 14 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 15 | 17613-K0V-A00 | CUSHION, RR. FUEL TANK | 1 | |
| 16 | 17614-KR3-000 | COLLAR FUEL TANK MT | 1 | |
| 17 | 17620-K0N-D01 | CAP COMP., FUEL FILLER | 1 | |
| 17 | 17620-KWF-902 | CAP COMP., FUEL FILLER | 1 | |
| 18 | 17650-K0V-A01 | HOSE COMP., FUEL FEED | 1 | |
| 19 | 17688-K0N-D00 | TUBE ASSY., PUMP FEED | 1 | |
| 20 | 17689-K0N-D00 | TUBE ASSY., PUMP RETURN | 1 | |
| 21 | 17724-K0N-D00 | CLIP, TUBE(B18.2) | 2 | |
| 22 | 33115-KVK-900 | RUBBER, HEADLIGHT | 1 | |
| 23 | 37800-K0V-A01 | FUEL UNIT ASSY. | 1 | |
| 24 | 50281-K0N-D00 | GROMMET, SHROUD | 2 | |
| 25 | 61308-K43-900 | SPONGE, FR. COWL RUBBER | 1 | |
| 26 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 27 | 91305-443-740 | O RING, 39.5 X 5 | 1 | |
| 28 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 29 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 1 | |
| 30 | 95701-08028-08 | BOLT, FLANGE, 8X28 | 1 | |
