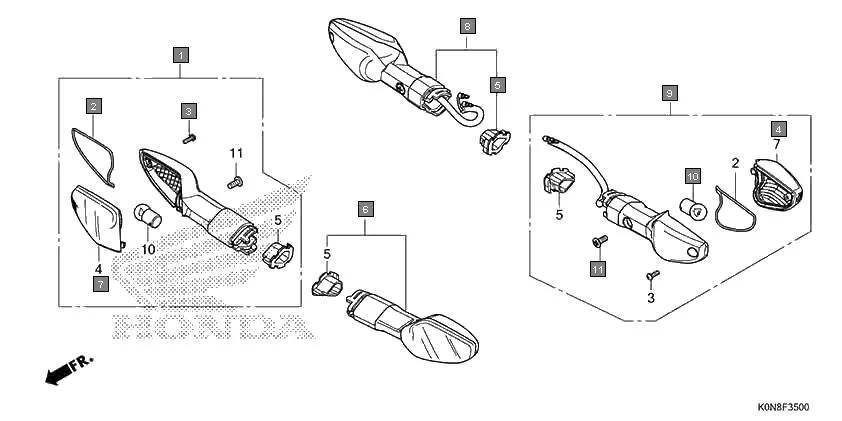

F-35 - WINKER
HONDA SP125 CBF125MN · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-K0N-D01 | LIGHT ASSY., R. FR. WINKER (12V 10W) | 1 | |
| 2 | 33401-K0N-D01 | GASKET, SEAL | 4 | |
| 3 | 93901-24310 | SCREW TAPPING 4X12 | 4 | |
| 4 | 33403-K0N-D01 | LENS, R. WINKER (R. FR./L. RR.) | 2 | |
| 5 | 33408-K0N-D01 | CLIP, LOCKING | 4 | |
| 6 | 33450-K0N-D01 | LIGHT ASSY., L. FR. WINKER (12V 10W) | 1 | |
| 7 | 33453-K0N-D01 | LENS, L. WINKER (L. FR./R. RR.) | 2 | |
| 8 | 33600-K0N-D01 | LIGHT ASSY., R. RR. WINKER (12V 10W) | 1 | |
| 9 | 33650-K0N-D01 | LIGHT ASSY., L. RR. WINKER (12V 10W) | 1 | |
| 10 | 34930-KWA-930 | BULB, WINKER(12V 10W)(AMBER) | 4 | |
| 11 | 90380-KZZ-900 | SCREW, SPECIAL, 6X11 | 4 | |
