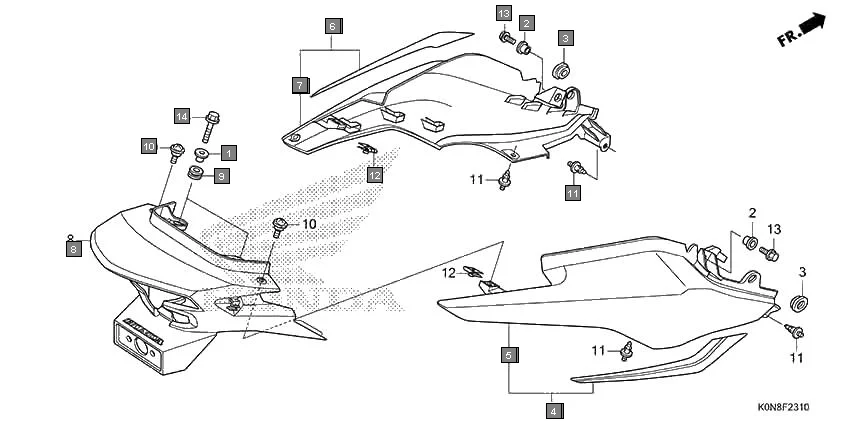

F-23-10 - REAR COWL
HONDA SP125 CBF125MN · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80111-K0N-D00 | COLLAR, RR. FENDER | 2 | |
| 2 | 61101-K55-600 | COLLAR, FR. FENDER SETTING | 2 | |
| 3 | 64413-KSS-C00 | GROMMET, BODY COVER | 2 | |
| 4 | 77260-K0N-DG0ZF | COWL SET, R. RR.(WL) *TYPE4 1* | 1 | |
| 4 | 77260-K0N-DG0ZG | COWL SET, R. RR.(WL) *TYPE3 1* | 1 | |
| 4 | 77260-K0N-DG0ZH | COWL SET, R. RR.(WL) *TYPE2 1* | 1 | |
| 4 | 77260-K0N-DG0ZJ | COWL SET, R. RR.(WL) *TYPE1 1* | 1 | |
| 5 | 77261-K0N-D00ZF | COWL, R. RR. *NHC44M* MAT FROZEN SILVER METALLIC 2 | 1 | |
| 5 | 77261-K0N-D00ZC | COWL, R. RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 6 | 77270-K0N-DG0ZF | COWL SET, L. RR.(WL) *TYPE4 1* | 1 | |
| 6 | 77270-K0N-DG0ZG | COWL SET, L. RR.(WL) *TYPE3 1* | 1 | |
| 6 | 77270-K0N-DG0ZH | COWL SET, L. RR.(WL) *TYPE2 1* | 1 | |
| 6 | 77270-K0N-DG0ZJ | COWL SET, L. RR.(WL) *TYPE1 1* | 1 | |
| 7 | 77271-K0N-D00ZF | COWL, L. RR. *NHC44M* MAT FROZEN SILVER METALLIC 2 | 1 | |
| 7 | 77271-K0N-D00ZC | COWL, L. RR.(WOL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 77280-K0N-D00ZA | COWL SET, RR. CENTER(WL) *TYPE1* | 1 | |
| 9 | 80112-K0N-D00 | RUBBER, RR. FENDER | 2 | |
| 11 | 90116-SP0-003 | CLIP, BUMPER SEAL | 4 | |
