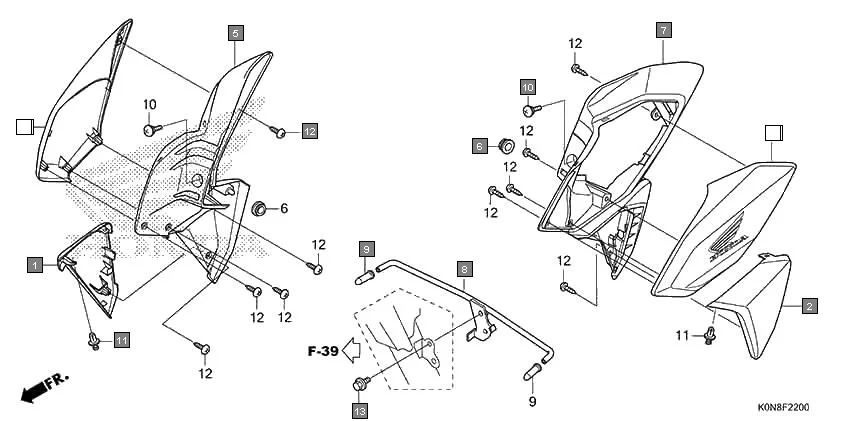

F-22 - SHROUD
HONDA SP125 CBF125MN · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50250-K0N-D00ZF | GARNISH, R. SHROUD *NH1* BLACK | 1 | |
| 2 | 50255-K0N-D00ZC | GARNISH, L. SHROUD *NH1* BLACK | 1 | |
| 3 | 50265-K0N-DG0ZE | SHROUD SET, R.(WL) *TYPE1* | 1 | |
| 3 | 50265-K0N-DG0ZF | SHROUD SET, R.(WL) *TYPE4 1* | 1 | |
| 3 | 50265-K0N-DG0ZG | SHROUD SET, R.(WL) *TYPE3 1* | 1 | |
| 3 | 50265-K0N-DG0ZH | SHROUD SET, R.(WL) *TYPE2 1* | 1 | |
| 3 | 50265-K0N-Y00ZE | SHROUD SET, R.(WL) *NHC44M* MAT FROZEN SILVER METALLIC 2 | 1 | |
| 3 | 50265-K0N-Y00ZB | SHROUD SET, R.(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 50275-K0N-Y00ZB | SHROUD SET, L.(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 50275-K0N-DG0ZE | SHROUD SET, L.(WL) *TYPE1* | 1 | |
| 4 | 50275-K0N-DG0ZF | SHROUD SET, L.(WL) *TYPE4 1* | 1 | |
| 4 | 50275-K0N-DG0ZG | SHROUD SET, L.(WL) *TYPE3 1* | 1 | |
| 4 | 50275-K0N-DG0ZH | SHROUD SET, L.(WL) *TYPE2 1* | 1 | |
| 4 | 50275-K0N-Y00ZE | SHROUD SET, L.(WL) *NHC44M* MAT FROZEN SILVER METALLIC 2 | 1 | |
| 5 | 50280-K0N-D00 | SHROUD, R. INNER | 1 | |
| 6 | 50281-K0N-D00 | GROMMET, SHROUD | 2 | |
| 7 | 50285-K0N-D00 | SHROUD, L. INNER | 1 | |
| 8 | 50295-K0N-D00 | STAY COMP., SHROUD | 1 | |
| 9 | 61312-KCT-690 | BOOT, HEAD LIGHT STAY | 2 | |
| 10 | 90104-KT2-000 | SCREW, SPECIAL, 6X14 | 2 | |
| 11 | 90116-K0A-E11 | RIVET, PUSH, 6MM | 2 | |
| 12 | 93903-24380 | SCREW TAPPING, 4 X 12 | 10 | |
