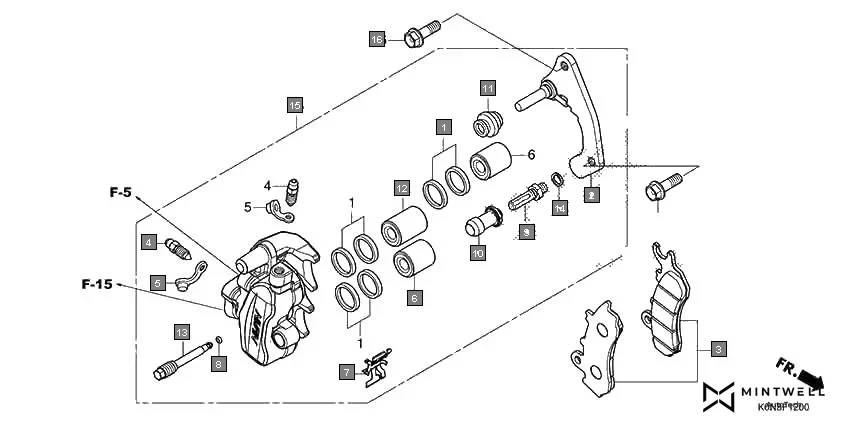

F-12 - FRONT BRAKE CALIPER
HONDA SP125 CBF125MN · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-MZ2-405 | SEAL SET, PISTON | 3 | |
| 2 | 06453-K67-951 | BRACKET SUB ASSY., R. FR. | 1 | |
| 3 | 06455-K67-951 | PAD SET, FR. | 1 | |
| 4 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 2 | |
| 5 | 43353-461-771 | CAP, BLEEDER | 2 | |
| 6 | 45107-KPN-E21 | PISTON A, 22(NISSIN) | 2 | |
| 7 | 45108-KPN-E21 | SPRING, PAD(NISSIN) | 1 | |
| 8 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 9 | 45131-GZ0-006 | BOLT, PIN | 1 | |
| 10 | 45132-166-016 | BOOT, PIN BUSH(NISSIN) | 1 | |
| 11 | 45133-MA3-006 | BOOT B | 1 | |
| 12 | 45207-KPN-E21 | PISTON B, 22(NISSIN) | 1 | |
| 13 | 45215-KPH-951 | PIN, HANGER | 1 | |
| 14 | 45216-166-006 | WASHER, WAVE | 1 | |
| 15 | 45250-KVS-M21 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 | |
| 16 | 90155-GGZ-J00 | BOLT, FLANGE, 8X25 | 2 | |
