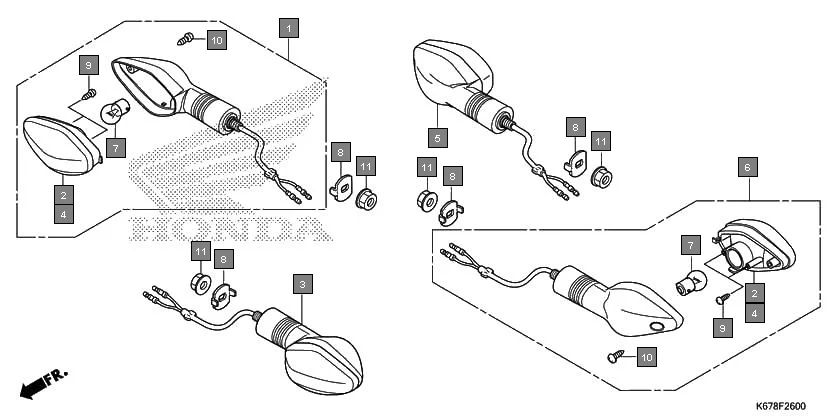

F-26 - WINKER
HONDA CB Shine SP CBF125MJ/MK · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-K67-901 | WINKER ASSY., R. FR.(12V 10W) | 1 | |
| 2 | 33403-K67-901 | LENS COMP., R. (R. FR./L. RR.) | 2 | |
| 3 | 33450-K67-901 | WINKER ASSY., L. FR.(12V 10W) | 1 | |
| 4 | 33453-K67-901 | LENS COMP., L. (L. FR./R. RR.) | 2 | |
| 5 | 33600-K67-901 | WINKER ASSY., R. RR.(12V 10W) | 1 | |
| 6 | 33650-K67-901 | WINKER ASSY., L. RR.(12V 10W) | 1 | |
| 7 | 34930-KWA-930 | BULB, WINKER(12V 10W)(AMBER) | 4 | |
| 8 | 61315-GGJ-700 | STAY, WINKER | 4 | |
| 9 | 93901-32210 | SCREW, TAPPING, 3X10 | 8 | |
| 10 | 93901-34380 | SCREW TAPPING 4X12 | 4 | |
