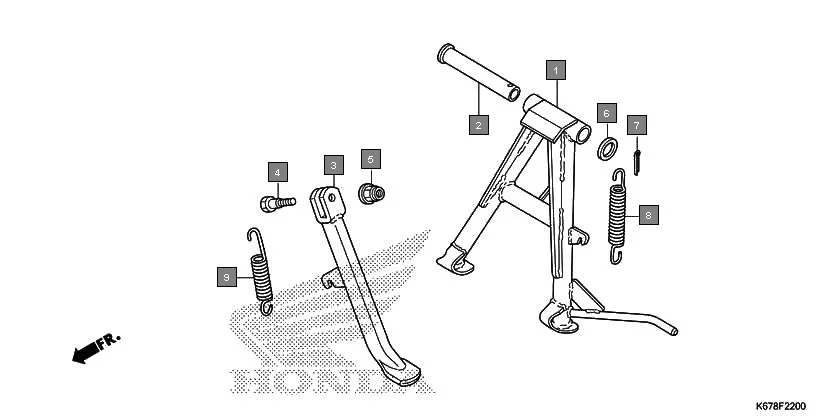

F-22 - STAND
HONDA CB Shine SP CBF125MJ/MK · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-KTE-650 | STAND COMP., MAIN | 1 | |
| 2 | 50526-KTE-910 | SHAFT MAIN STAND PIVOT | 1 | |
| 3 | 50530-KTE-910 | BAR COMP., SIDE STAND | 1 | |
| 4 | 90107-GN1-010 | SCREW SIDE STAND PIVOT | 1 | |
| 5 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 6 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 7 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 8 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 9 | 95014-72102 | SPRING, SIDE STAND | 1 | |
