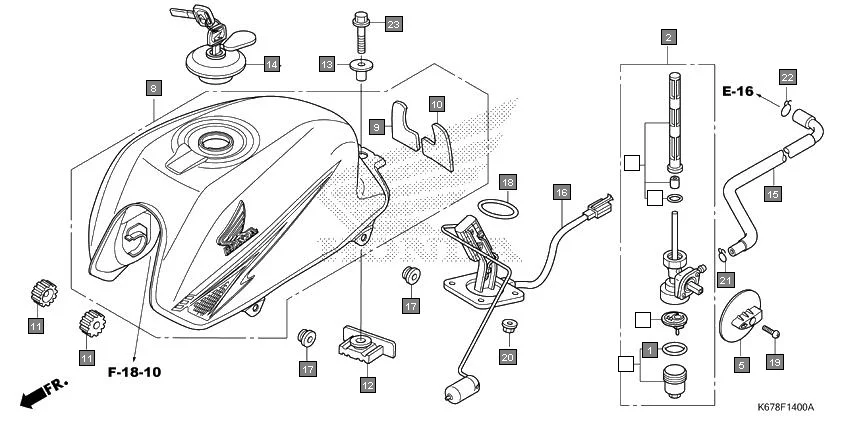

F-14 - FUEL TANK
HONDA CB Shine SP CBF125MJ/MK · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16173-001-004 | O-RING | 1 | |
| 2 | 16950-K67-901 | COCK ASSY., FUEL | 1 | |
| 3 | 16952-K67-901 | SCREEN SET, FUEL STRAINER | 1 | |
| 4 | 16953-KWF-900 | CUP SET FUEL STRAINER | 1 | |
| 5 | 16955-K67-900 | LEVER, FUEL COCK | 1 | |
| 6 | 16958-397-771 | O-RING, 9.0X1.3 | 1 | |
| 7 | 16959-471-831 | FILTER, CUP | 1 | |
| 8 | 17500-K67-900ZG | TANK ASSY., FUEL(WL) *TYPE5* | 1 | |
| 8 | 17500-K67-900ZH | TANK ASSY., FUEL(WL)*TYPE4* | 1 | |
| 8 | 17500-K67-900ZJ | TANK ASSY., FUEL(WL)*TYPE3* | 1 | |
| 8 | 17500-K67-900ZK | TANK ASSY., FUEL(WL)*TYPE2* | 1 | |
| 8 | 17500-K67-900ZL | TANK ASSY., FUEL(WL)*TYPE1* | 1 | |
| 9 | 17506-K67-900 | FILM, R. TANK PROTECTOR | 1 | |
| 10 | 17507-K67-900 | FILM, L. TANK PROTECTOR | 1 | |
| 11 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 12 | 17613-KTE-910 | RUBBER FUEL TANK RR | 1 | |
| 13 | 17614-KR3-000 | COLLAR FUEL TANK MT | 1 | |
| 14 | 17620-KSP-911 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 | |
| 15 | 17681-KTE-650 | TUBE, FUEL | 1 | |
| 16 | 37800-K67-901 | FUEL UNIT ASSY. | 1 | |
| 17 | 83551-376-000 | GROMMET, SIDE COVER | 4 | |
| 18 | 91305-443-740 | O RING, 39.5 X 5 | 1 | |
| 19 | 93500-04012-0G | SCREW, PAN, 4X12 | 1 | |
| 21 | 95002-02080 | CLIP, TUBE | 1 | |
| 22 | 95002-50000 | CLIP, C9 TUBE | 1 | |
| 23 | 95701-08028-00 | BOLT FLANGE, 8 X 28 | 1 | |
