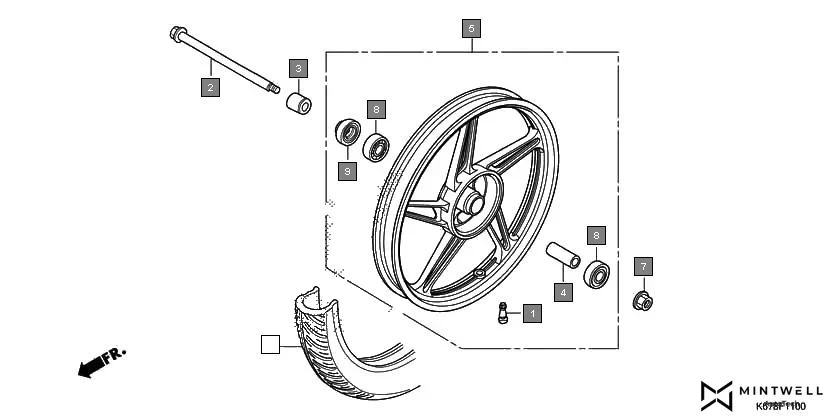

F-11 - FRONT WHEEL(DRUM)
HONDA CB Shine SP CBF125MJ/MK · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 2 | 44301-KPL-900 | AXLE, FRONT WHEEL | 1 | |
| 3 | 44311-KSP-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 4 | 44620-KSP-900 | COLLAR FR AXLE DIST | 1 | |
| 5 | 44650-K67-900ZA | WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 6 | 44711-K55-601 | TIRE, FR.(CEAT)(80/100-18 M/C 47P) | 1 | |
| 6 | 44711-KRY-971 | TYRE,FR | 1 | |
| 6 | 44711-KTE-602 | TIRE, FR.(TVS) (80/100-18 M/C 47P) | 1 | |
| 7 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 91052-K23-903 | BEARING, RADIAL BALL, 6301U (NEI) | 2 | |
| 8 | 91052-K23-905 | BEARING, RADIAL BALL, 6301U (JTEKT) | 2 | |
| 8 | 91052-KWW-A81 | BEARING, RADIAL BALL, 6301U (SKF) | 2 | |
| 8 | 91053-KWW-642 | BEARING, RADIAL BALL, 6301U (FAG) | 2 | |
| 9 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
