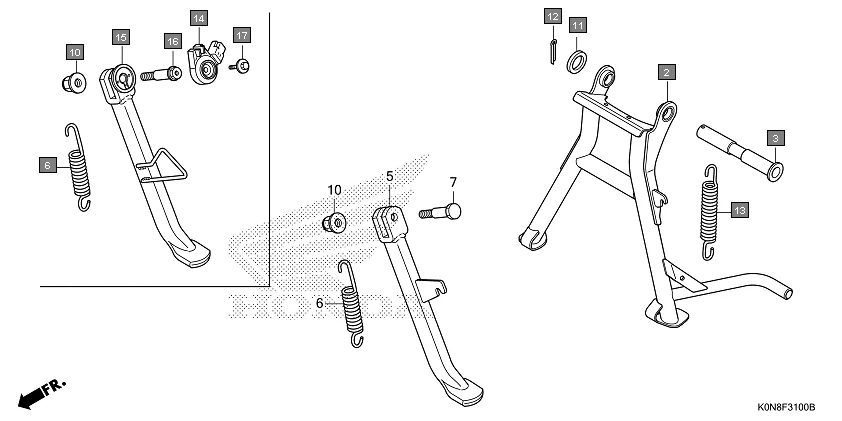

F-31 - STAND
HONDA SP125 CBF125MER · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 50500-K0N-D00 | STAND COMP., MAIN | 1 | |
| 3 | 50526-K0N-D00 | SHAFT, MAIN STAND PIVOT | 1 | |
| 6 | 50541-K0N-D00 | SPRING, SIDE STAND | 1 | |
| 10 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 11 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 12 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 13 | 50520-K0N-D00 | SPRING, MAIN STAND | 1 | |
| 14 | 35700-K0J-N01 | SWITCH ASSY., SIDE STAND | 1 | |
| 15 | 50530-K0N-D00 | BAR COMP., SIDE STAND | 1 | |
| 16 | 90108-KZL-860 | BOLT, SIDE STAND PIVOT | 1 | |
| 17 | 90132-KYJ-960 | BOLT, SPECIAL, 6X16 | 1 | |
